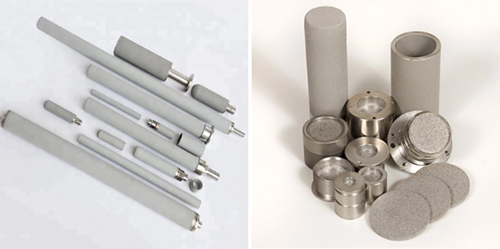

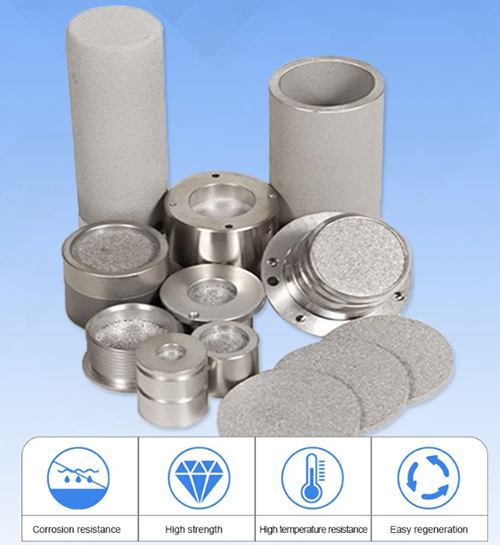

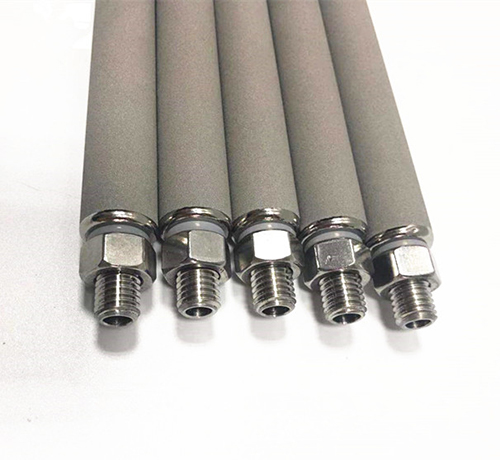

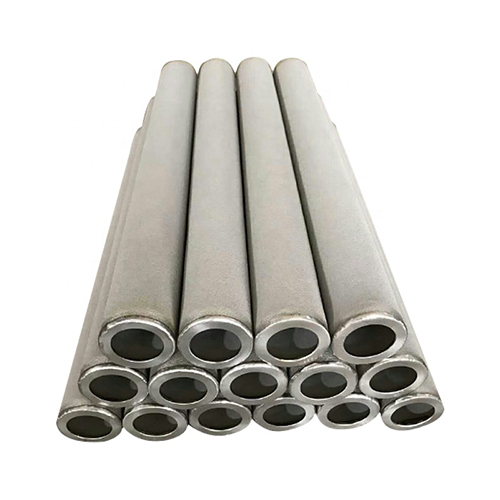

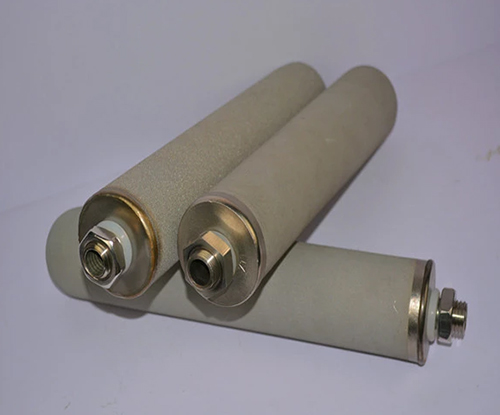

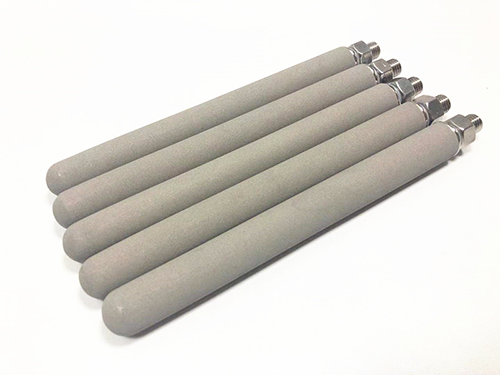

Titanium Powder Sintered porous filter tube/filter cartridges
Name: Titanium Powder Sintered Porous Filter
Density: 4.51g/cm3
Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom
Grade: Titanium metal powder
Sizes:
Different dimension and shape is available,
or make according to client's drawing
Shape: Plate, disc, frit, ring, bar, tube, cone, cup, cap
Hole：The apertures are criss-crossed, the hole type is stable, and the distribution is even.
Porosity: 20%-40%
Pore Size: 5-180μm
Technique: Sintered
Filtration precision: 0.5-500μm
Work environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid,5% hydrochloric acid, molten sodium, liquid hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor , gydrogen gas, carbon dioxide gas.
The titanium powder sintered filter cartridge is made of titanium powder, after classification, molding, sintered to be the filter cartridge, has uniform aperture and structure, with high porosity and low filtration resistance, it has wonderful filtration effect. Due to the usage of the titanium material, it has perfect chemical stability, which makes it suitable for the filtration of the strong corrosive solvents. It is also can be cleaned repeatedly, which gives it a longer service life.
Application:
seawater desalination and sewage treatment, Filtration of the strong polarization liquid, Filtration of strong acid and alkali, Filtration of the oil and organic solvents., Decarburization filtration, The end filtration of the mineral water and purified water., Filtration of the strong oxidizing
Feature:
1. Corrosion resistance, high temperature resistant, high strength
2. Easy to ensure filtration accuracy, and easy regeneration.
3. They are widely used in the petroleum, chemical, automotive, tractor, aircraft, and shipbuilding industries.
4. They are also widely used in filter elements for pneumatic and hydraulic circuits.
Pure water flow rate reference table: the initial value of 10''cartridge L/H (P=0.2 MPa, 1cP, 25°C)
|
Precision
|
0.2
|
0.45
|
1
|
2
|
3
|
5
|
10
|
20
|
30
|
50
|
80
|
|
Capacity
|
180
|
200
|
250
|
280
|
300
|
350
|
500
|
800
|
1000
|
1500
|
1600
|
|
Chemical composition
|
|
|
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
|
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
|
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
|
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Package Terms:
Moisture-proof cloth, foam cotton inside, Carbon or plywood case outside.
Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity: By air or sea transport.
