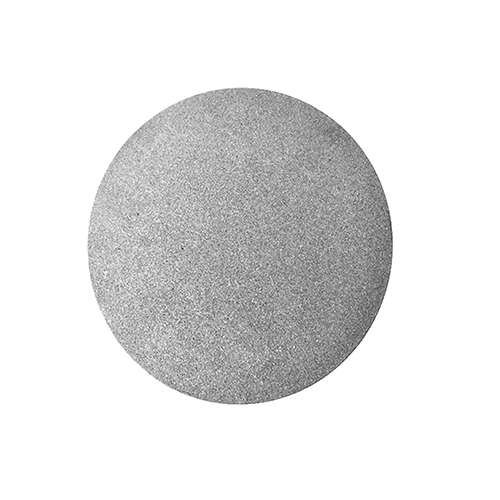

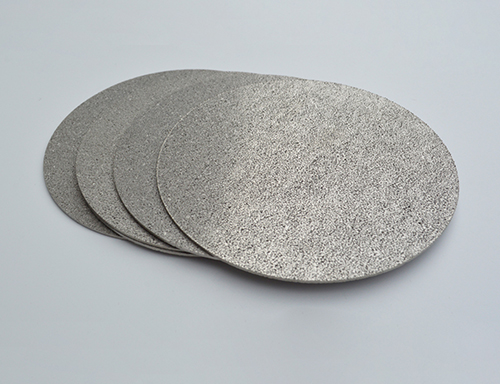

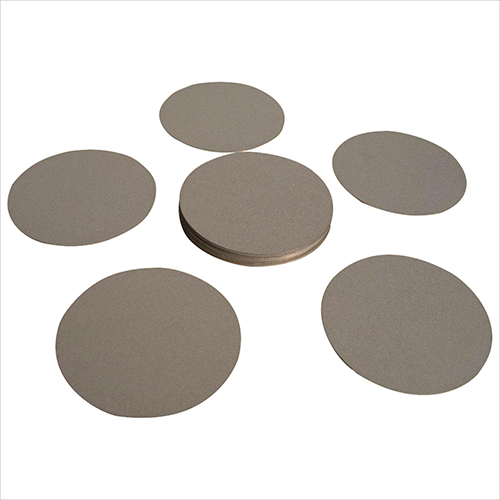

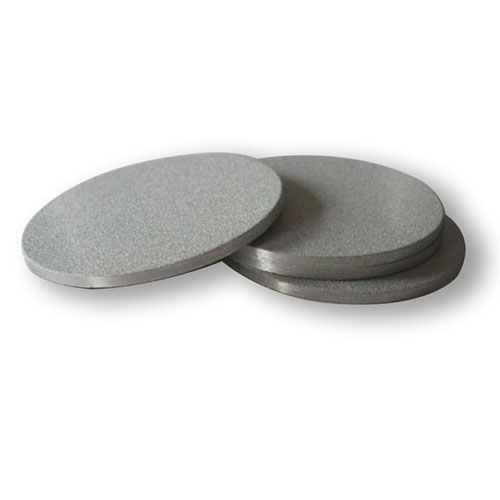

Titanium Powder Sintered porous Disc filter/plate filter
Name: Titanium Powder Sintered Porous Disc Filter
Density: 4.51g/cm3
Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom
Grade: Titanium metal powder
Sizes:
Different dimension and shape is available,
or make according to client's drawing

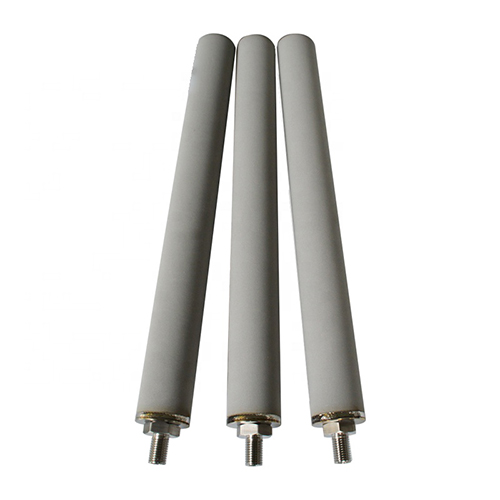

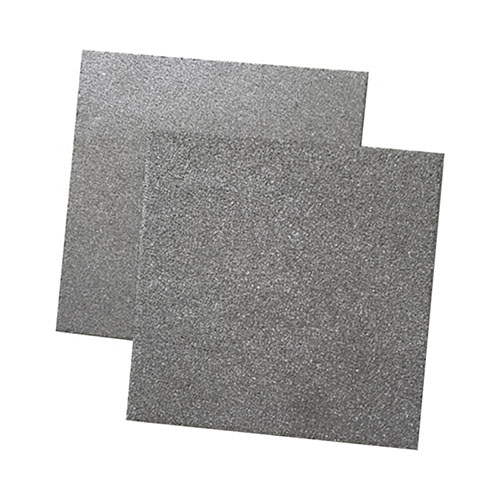

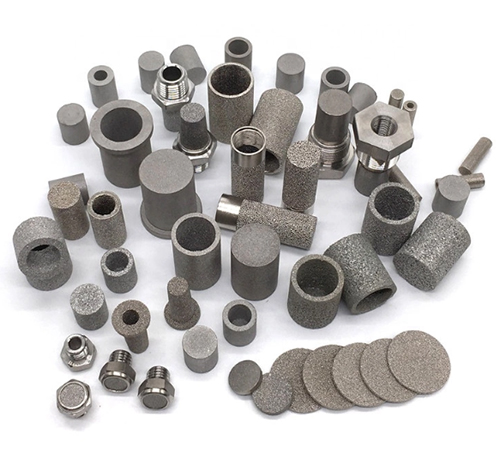

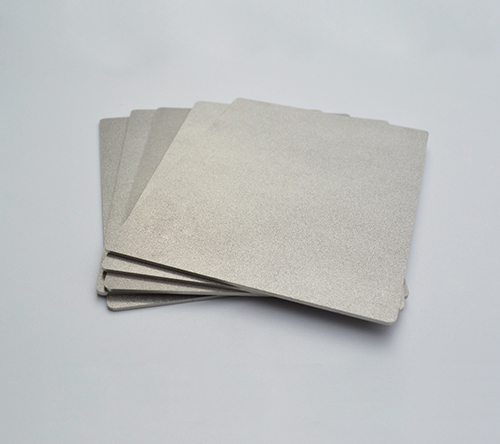

Shape: Plate, disc, frit, ring, bar, tube, cone, cup, cap
Hole：The apertures are criss-crossed, the hole type is stable, and the distribution is even.
Porosity: 20%-40%
Specific surface area: 10-40cm²/cm³
Pore Size: 5-200μm
Technique: Sintering
Filtration precision: 0.5-300μm
Work environment
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid,5% hydrochloric acid, molten sodium, liquid hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor , gydrogen gas, carbon dioxide gas.
Application:
Porous powder sintered filter with its unique properties can be widely used in the pharmaceutical industry, water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry and gas purification .
Feature:
1, uniform structure, narrow pore size distribution, high separation efficiency.
2, high porosity, filtration resistance, high penetration efficiency.
3, high temperature, generally below 280 degrees in normal use.
4, good chemical stability, acid corrosion, has antioxidant properties.
5, no particle shedding, not to dope the formation of secondary pollution, food hygiene and pharmaceutical GMP requirements
6, good mechanical properties, can be suction filter press, simple operation.
7, the pressure is low, small footprint, large flow.
8, anti-microbial ability, not the role of microorganisms occur.
9, the molding process is good, the overall length of up to 1000 mm without welding.
10,available online renewable, easy to clean, long life (typically several times the membrane filter)
|
Filtration grade
|
Filter rate
(μm)
|
Pore size
Max.
(μm)
|
Permeability
10-12m²
|
Breathability
m³/h.m².Kpa
|
Thickness
(mm)
|
Compression
strength
Mpa/cm²
|
|
S8
|
0.5
|
5
|
|
5
|
3
|
3.0
|
|
S7
|
1
|
10
|
|
10
|
3
|
3.0
|
|
S6
|
5
|
15
|
0.23
|
40
|
3
|
3.0
|
|
S5
|
10
|
30
|
1.81
|
160
|
3
|
3.0
|
|
S4
|
20
|
60
|
3.82
|
350
|
3
|
3.0
|
|
S3
|
30
|
100
|
7.29
|
500
|
3
|
2.5
|
|
S2
|
40
|
120
|
9.43
|
700
|
3
|
2.5
|
|
S1
|
70
|
180
|
15.1
|
1000
|
3
|
2.5
|
|
Chemical composition
|
|
|
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
|
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
|
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
|
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
| |
|
|
|
|
|
|
|
|
|
|
|
|

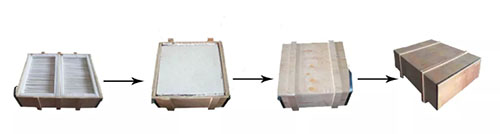

Package Terms:
Moisture-proof cloth, foam cotton inside, Carbon or plywood case outside.
Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity: By air or sea transport.
Email: jasontitanium@163.com
Whatsapp/Skype/Wechat/Line: +86-15829508781
