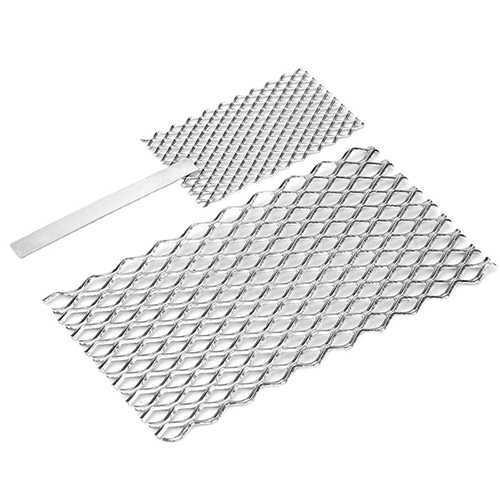

MMO Titanium Mesh anode Titanium anode plate

Name: MMO coated titanium anode

Density: 4.51g/cm3

Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom

Grade: Titanium GR1 as substrate, Ruthenium-Iridium oxide or platinum as coating

Surface: polished, Sand blasting, Brush Coating, pickling，bright

Sizes:

Different dimension and shape is available,

or make according to client's drawing

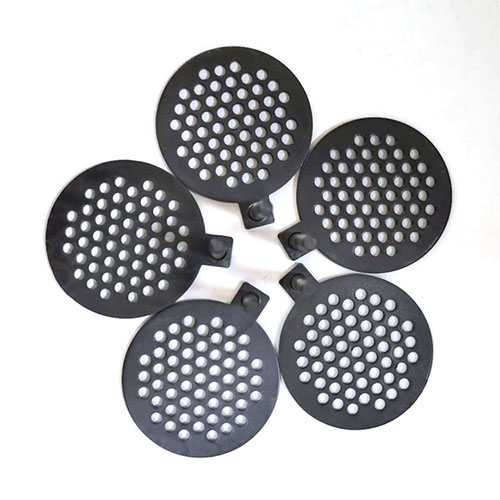

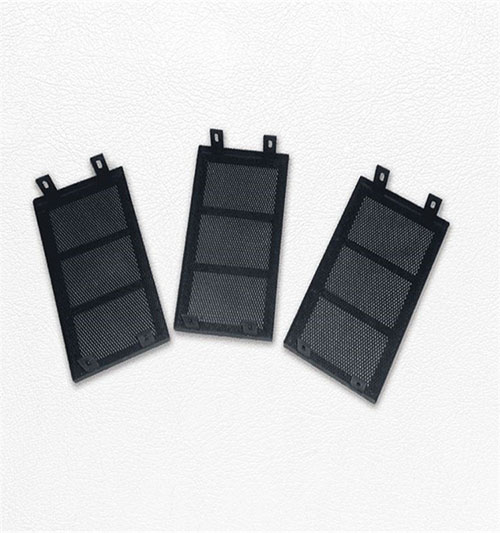

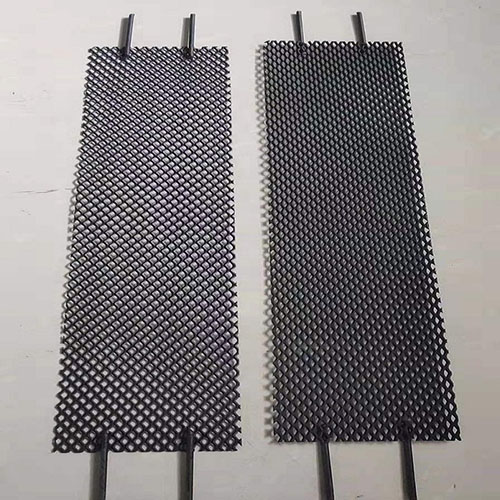

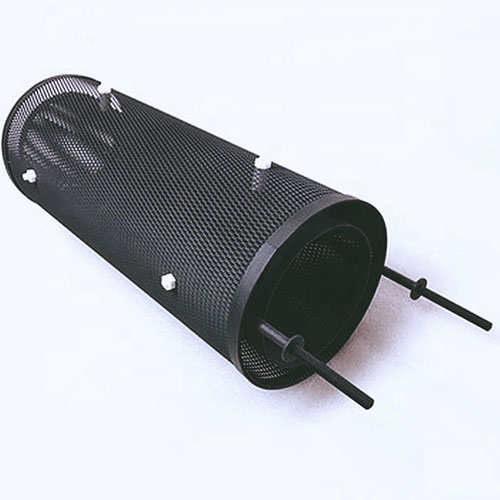

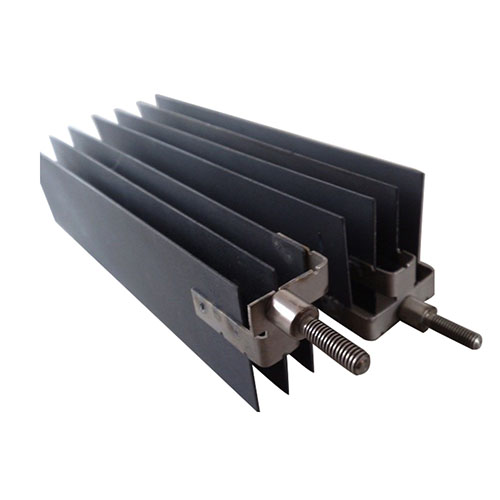

Shape: Square, Round, Rhombus, Mesh, Plate, Tube, Rod

Coating: Electroplating Ir, Ru, Ta, Pt, etc.

Coating Thickness: 0.2~10 micron

Technique: Welded,          Electroplate

Mesh Size: 6*3 mm, 5*4 mm, 8*4mm, 10*5mm, 12.5*4.5mm

Working Parameter

Current density≤2000A/M2

PH 0.1~14

Max content of Fluoride ion is 200PPM

Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.

Three Procedures:

1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.

2. Brushing

Drying

After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.

Then, heat treatment will be going on after drying.

The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.

Application:

Sewage treatment, Cathode protection, Noble metal plating (silver, gold), Sea water antifouling, Testing electrode, Water ionizer, Electroplating Industry, Electrolytic water, alkaline & Acidic water production,

Feature:

1) Insoluble anode, Stable dimension,

2) Stable distance of the anode & cathode, Stable cell voltage

3) Low working voltage, save power/electricity

4) High purity of the electroposited material

5) No pollution of the electrolysis cell

6) Light weight

7) The titanium material is recyclable

8) High property of current efficiency & catalysis

9) Long working life

Package Terms:

Moisture-proof cloth, foam cotton inside, Carbon or plywood case outside.

Shipping Terms:

1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.

2. For large quantity: By air or sea transport.
