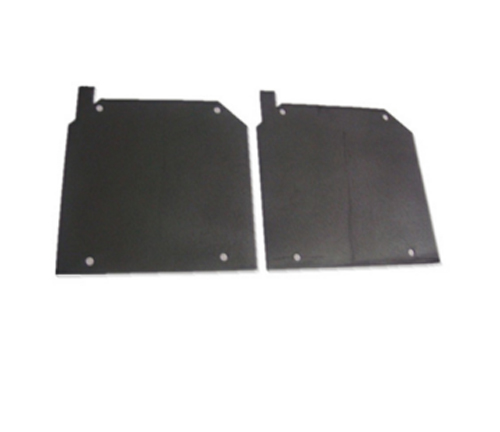

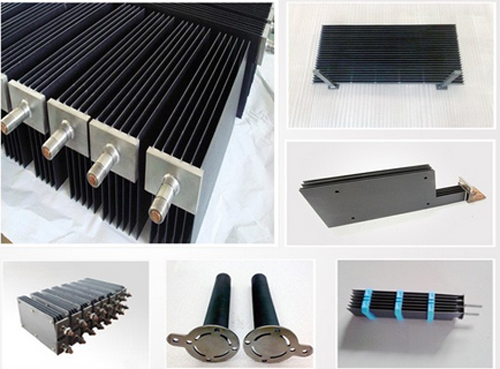

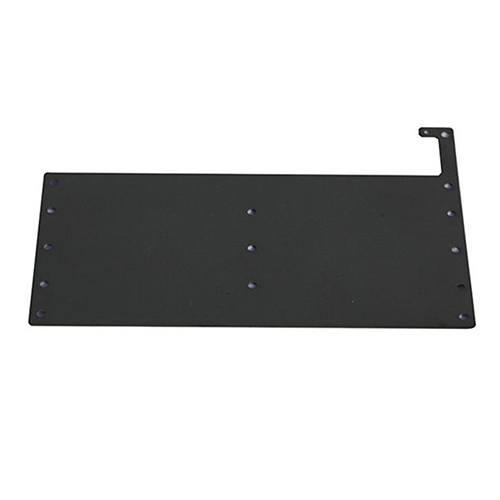

Titanium MMO Anode

Material

Gr1 Gr2 titanium

Coating

IrIridium, Ruthenium-Iridium-Titanium, Ruthenium oxide, Iridium oxideas coatingidium-Tantalum, platinum

Technology

Sand blasting, Acid washing and brush coating

Dimension

According to customers’ drawing

Shape of base material

Sheet, pipe, rod, wire and mesh

Parameter

Current density ≤2000A/M2

2) Temperature <60°C

3) Homogenous degree >=85%

4) Oxygen-liberated potential <=1.68V

Electrolyte

Salt water/ Saline solution/Brine/Sea water

Advantages

1.Improved resistance for oxygen/chlorine mixed evolution

2.Range of compositions for various duties available

3.Improved resistance in acidic media

4.Low wear rate

Application

1. Water (Brine and Sea water) Treatment.

2. Chemical, Paper, Petro-Chemical and Fertilizer Industries.

3. Textile Industries.

4. Electrical & Electronics Engineering Industries.

5. Metal Finishing, Electro Plating, Semi Conductors and PCB Industries.

6. Chemical Industries.

7. Chlore-Alkali & Desalination application.

8. Cathodic Protection (ICCP)
