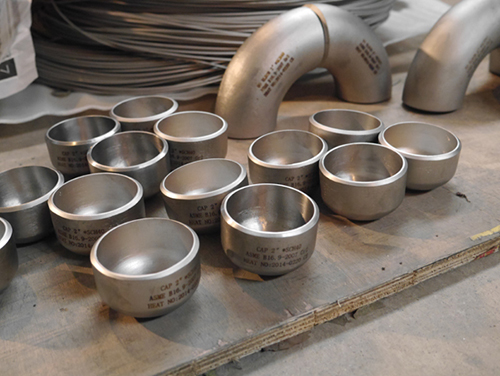

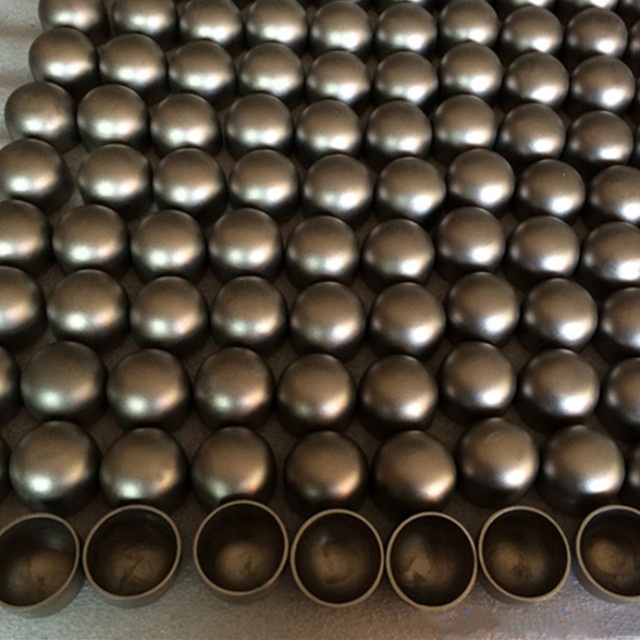

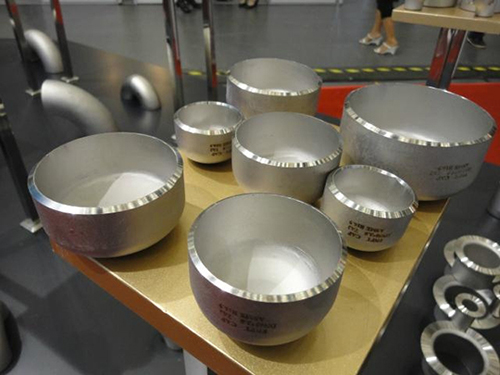

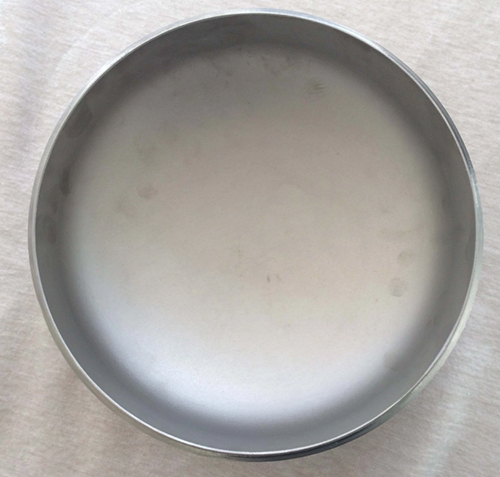

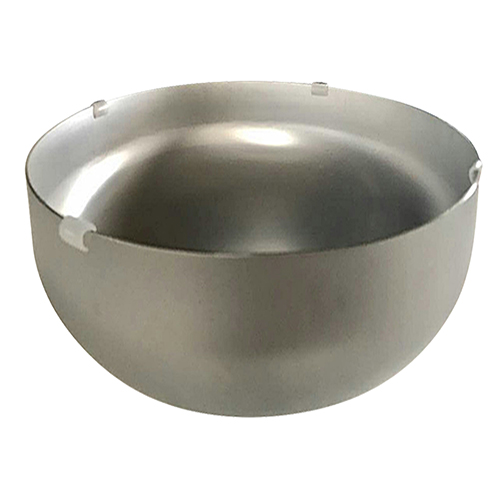

ASME B16.9 Gr2 Titanium Caps

Product name:  titanium end caps for titanium pipe

Standard: ASTM B363, EN 10253, DIN 2605, ASME B16.9, MSS SP-97 etc.

Density: 4.51g/cm3

Specification:

Outer Diameter   DN15-1200  NPS 1/2"-48"

Wall Thickness: 2MM-30MM    SCH5S-SCH160

Technique:  Butt welding, Seamless

Grade:

Titanium Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 (or monel 400/uns 04400, Nickel, R60702 Zirconium ) etc.

Color.: silver

Surface: Polished, Machining, Pickling, sand blasted

Application:

Petroleum, gas, chemical industry, electric power, metallurgy, pharmacy, shipyard and other similar yield.

Feature:

1. Low Density and High Specification Strength

2. Excellent Corrosion Resistance

3. Good Resistance to Effect of Heat

4. Excellent Bearing to Cryogenics Property

5. Nonmagnetic and Non-toxic

6. Good Thermal Properties

7. Low Modulus of Elasticity

The r of the dish cap avoids splicing, which will reduce the thickness and high stress.

The weld direction requirements for splicing are only allowed to be radial and circumferential. Large caps may cancel this requirement in the future. The distance of splicing should be required to be greater than 3δ and not less than 100mm (the weld heat affected zone is a high stress zone, and the chemical composition in the zone will be burnt. Therefore, avoid the high stress zone, which is related to the thickness. According to practical experience, the stress decay length is greater than 3δ and not less than 100mm). However, it is difficult for refrigeration equipment to meet this requirement and has its particularity.

Packing

Plywood case or According to customer requirements
