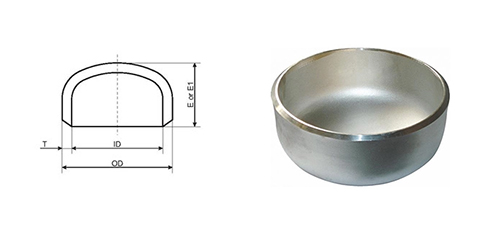

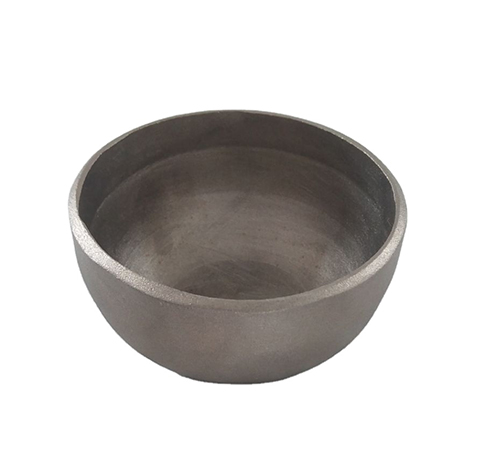

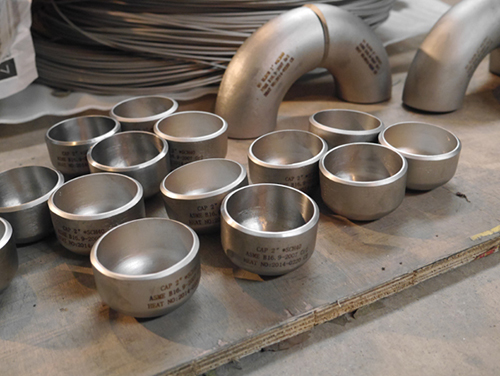

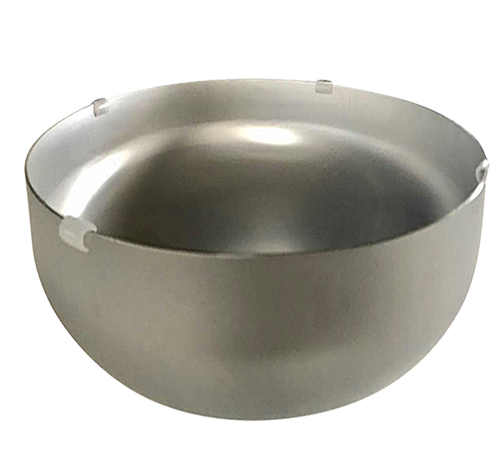

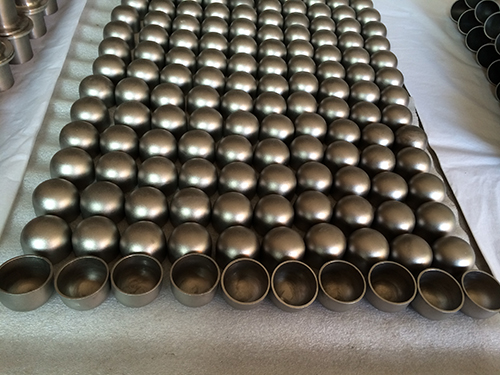

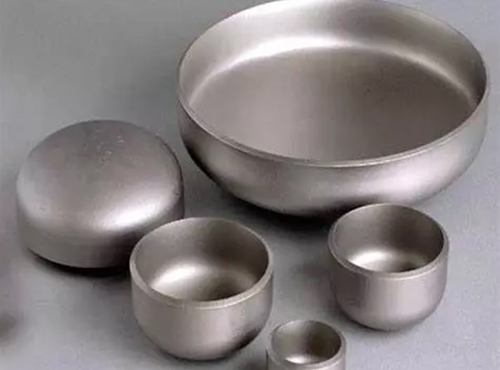

ANSI B16.9 Gr7 Titanium Pipe end caps

ANSI B16.9 Gr7 Titanium Pipe end caps ANSI B16.9 Gr7 Titanium Pipe end caps ANSI B16.9 Gr7 Titanium Pipe end caps ANSI B16.9 Gr7 Titanium Pipe end caps
Product name : ANSI B16.9 Gr7 Titanium Pipe end caps
Item : Titanium Caps-426
Price : USD20-USD100
Details :
Titanium and Titanium alloy Caps /Titanium Pipe End Caps

Name: Titanium Pipe End Caps ANSI B16.9

Density: 4.51g/cm3

Standard: GB,ASME ,ASTM ,EN,ISO,JIS,DIN

Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23,Nickel Ni200,Ni201


Surface
: polished, machining surface, quartz-shot, sand-blasting, Pickling

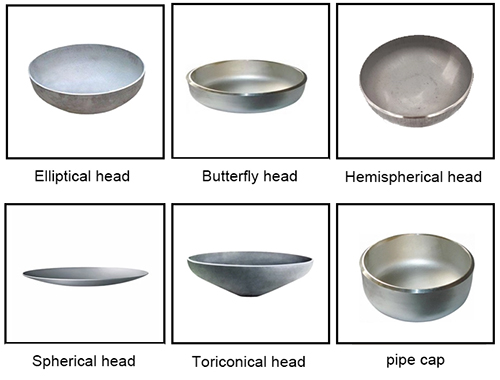

Type: Elliptical Head, Butterfly Head, Hemispherical Head, Spherical Head, Pipe Cap


Sizes:

Outer diameter: DN15-2400  Wall thickness: 1-30MM

NPS 1/2"-96" Schedule 5s to Schedule 160

Technical:

Welded, Forged, Pressing, Seamless

Inspection: X-Ray Tests or Dye Penetrate Tests


Application:

Petroleum, chemical, machinery, boiler, electric power, shipbuilding, papermaking, construction

Gas Pipe, Carbonization, Refrigeration, Light Industry, Salt Industry, Pressure Vessels

Feature:

1. Low Density and High Strength

2.Excellent Corrosion Resistance in acid and alkali salt

3.High heat transfer capability

4. Nonmagnetic and Non-toxic

5.Low elasticity module

6.Low thermal expansion coefficient

7.Superior strength-to-density ratios

8.Good strength at low and high temperature.

9.Good thermal properties



Chemical composition





N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

Gr 3

0.05

0.08

0.015

0.30

0.35

/

/

/

/

/

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9





Package Terms:



Moisture-proof cloth, foam cotton inside, wooden case outside.



Shipping Terms:



1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.



2. For large quantity: By air or sea transport.





Email: jasontitanium@163.com

Whatsapp/Skype/Wechat/Line: +86-15829508781
