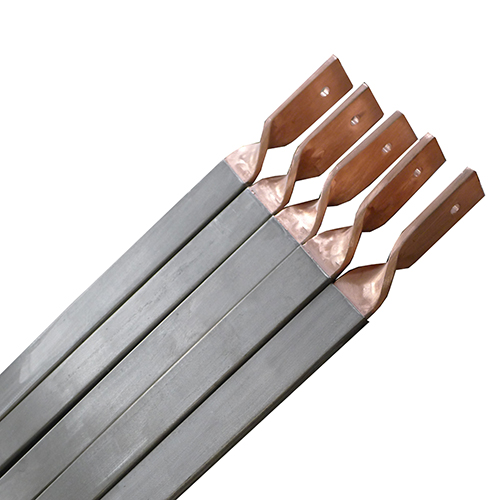

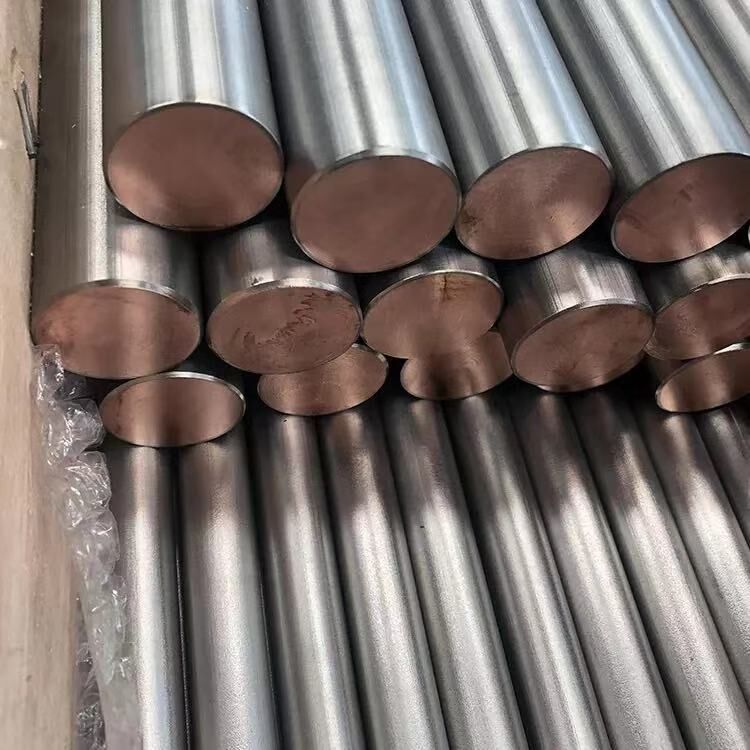

Name: Titanium clad copper bar

Clad material: Ti,Zr,Ni,Nb,Ta,SUS304,SUS316 etc

Standard: ASTM B432, GB/T12769-2003, ASTM B348

Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23

Surface: polished, machining surface

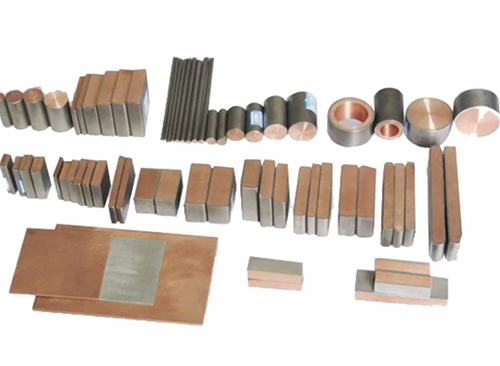

Type: round, flat, square, rectangular, drum

Sizes:

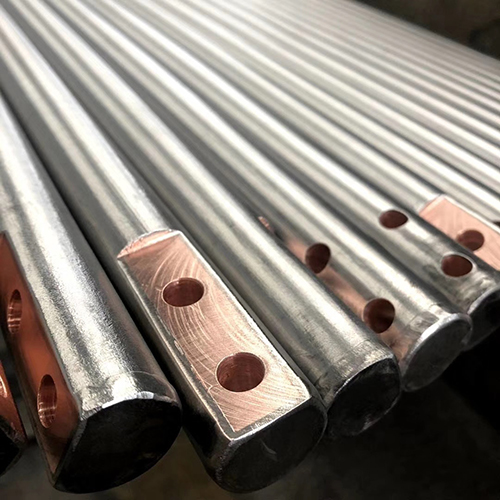

Round: ∅8-60mm

Square: 8-40mm

Oblong:T4-30xW10-150mm

Wire:∅2-8mm

Radius of Corner: R 2-4

Thickness of clad metal: 0.5 mm to 3.2 mm

Technical:

metallurgical bonding by explosive rolled

Application:

electroplating, electrolysis, hydrometallurgy, PCB, Oil and Chemical ,etc.

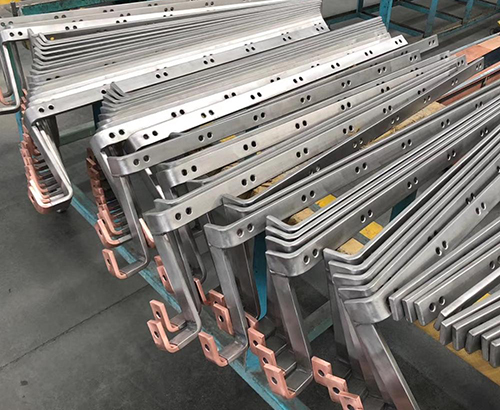

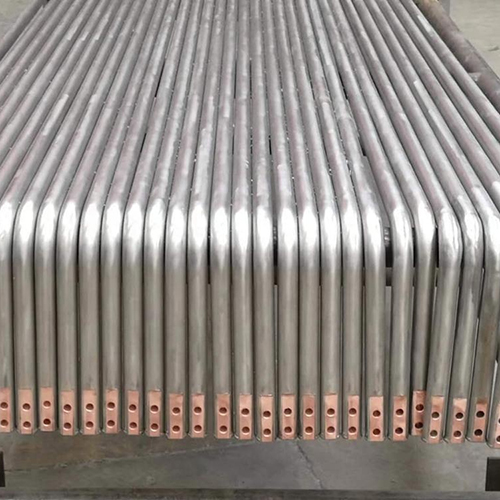

Titanium clad copper bar is a copper bar cladding with a certain thickness of titanium level with metal bonding or explosion bonding technology, mainly used as a stand in plating, electrolysis, hydrometallurgy, PCB processes. Because it has not only the original conductive property of the copper bar, but also protecting the copper bar from corroded by titanium level, therefore avoid the traditional copper bus bars shortcomings: danger and difficulty changing the anode metals, copper bar corrosion, heat generation caused by the electrical contact resistance in electrolysis and plating defects due to corroded and fallen copper compound, can greatly lower pollution of electrolyte. Now, the submerged Ti clad copper bus bar is the best choice for many industries including print circuit makers, steel (copper, gold) refining manufacturers.

The advantage of titanium clad copper

1:Low processing costs

2:Resistance to acid corrosion. Resistance to alkali corrosion.

  Resistance to chlorine ion corrosion due to outside Titanium layer.

3:Excellent conductivity and fully ductile for shaping and forming due to OFHC (Oxygen-Free

High Conductivity) Copper Core for connecting.

4:Save 10%~30% energy in plating system

Package Terms:

Moisture-proof cloth, foam cotton inside, wooden case outside.

Shipping Terms:

1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.

2. For large quantity: By air or sea transport.

Email: jasontitanium@163.com

Whatsapp/Skype/Wechat/Line: +86-15829508781
