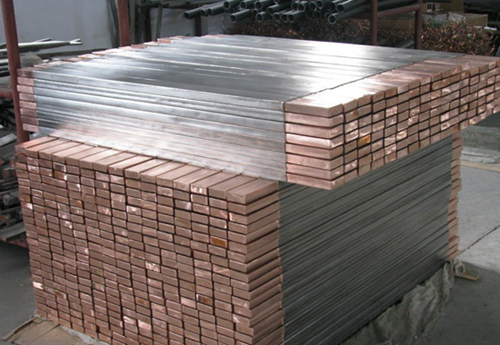

titanium clad cooper bar

titanium clad cooper bar
Product name : titanium clad cooper bar
Item :
Details :
 Titanium clad copper bar is a major part of metal anode ,mainly used in highly corrosive conditions of electrolysis, electroplating, hydrometallurgy and metal anode electrolyzer caustic soda production, successfully replaced the graphite anode.



Materials: composite materials: TI ——GR2,GR4

                     substrate materials: Cu——C11000
Surface:
 mill, polished, bright, brush, sand blast ,etc.



Details:

Grade

Technology

Shape

Standard(mm)

Surface













Gr1





GR2

GR4

C11000


hot extrusion,



hot extrusion+stretching,


explode,



explode+rolling

Square

LTH×WTH×WT-CR

24×24×(1.5~2)-5
27×27×(1.5~2)-6.5
29×29×(1.5~2)-7.5
30×30×(1.5~2)-8
32×32×(1.5~2)-9
33×33×(1.5~2)-12.5

















Hot crowded surface,


Cold surface,


Explosive composite annealing surface,


Explosive composite hot working surface

Rectangle


LTH×WTH×WT-CR

(35~40) ×(20~25) ×1.5-(2~3)

(40~50) ×(10~15) ×(1.0~1.5)-(2~3)

(40~50) ×(>15~40) ×(1.5~2.0)-(3~5)

(>50~80) ×(12~35) ×(1.5~2.0)-(3~5)

(>50~80) ×(35~40) ×(2.0~2.5)-(3~5)

(>80~100) ×(15~30) ×(1.5~2.0)-(3~8)

Rotundity

DIA×WT

Φ(20~30) ×(1.0~1.5)
Φ(>30~40) ×(1.0~2.0)
Φ(>40~60) ×(1.5~2.5)
Φ(>60~80) ×(2.0~3.0)

Cydariform

DIA×WT×HB

Φ25×14×1.5
Φ27×14×1.5
Φ29×14×1.5
Φ32×14×1.5
Φ34×14×1.5

Compressiform

LTH×WTH×WT-CR

(30~50) ×10~15×1.0-(10~16)



(>50~100) ×10~30×1.0-(10~32)







Email: jasontitanium@163.com
Skype: txcanberra
[Next : ]→
Related Products :

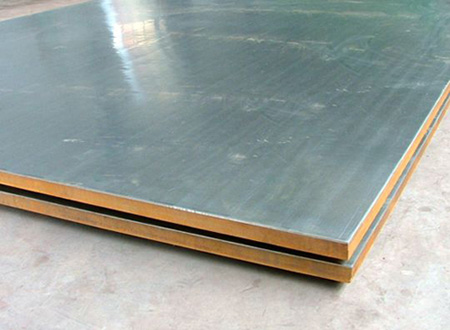

Gr1 titanium clad stainless steel plate
