ASTM B550 zirconium and zirconium alloy bar rod

Product name : ASTM B550 zirconium and zirconium alloy bar rod

Item : zirconium rod-125

Price : USD80-USD120

Details :

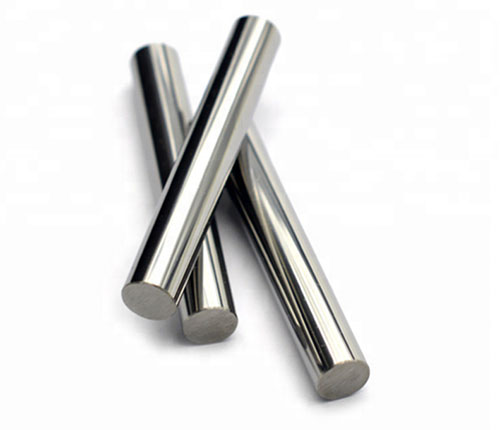

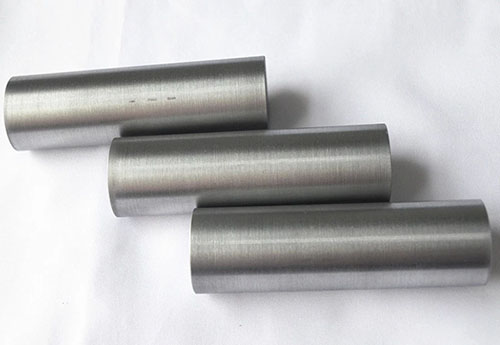

Zirconium round bar/ rod

Product name: pure zirconium round bar /rod

Specification: Dia(2~800)mm X L(50~3000)mm zirconium bar /rod

Density: 6.51g/cm3

Standard: ASTM B550 ASTM B551 ASTM B351 ASTM B352

Grade: UNS R60001,Zr700(R60700),Zr702 (R60702), Zr705 (R60705), Zr706(R60706)

Zr-2 (UNS R60802), Zr-4 (UNS R60804), Zr-2.5Nb (UNS R60901, UNS R60904), Zr1Nb

Application:

Ion implantation parts, electric vacuum components, heating elements and refractory parts
in high temperature furnaces, glass and glass fiber industry,
electrodes in the field of rare earth metal industry etc.

Feature:

Used in the manufacture of electric vacuum devices and electric light source parts

Suitable for processing parts of the ion implantation

For high-temperature heating elements and high-temperature structural parts

The glass and refractory fiber industry for the furnace electrode, in 1300 ℃ glass melt work, long life.

Rare earth industry for the electrode

Mechanical property

Grade	Zr700 (R60700)	Zr702 (R60702)	Zr704 (R60704)	Zr705 (R60705)	Zr706 (R60706)
Tensile strength min(Mpa)	-	380	415	550	510
Yield strength min(Mpa)	-	205	240	380	345
Tensile strength max(Mpa)	380	-	-	-	-
Yield strength max(Mpa)	305	-	-	-	-
Elongation min %	2	16	14	16	20
Bending radius *	5T	5T	5T	3T	2.5T
