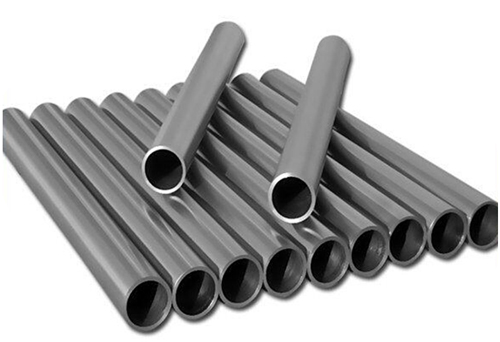

R60702 Zirconium Pipe

Product name : R60702 Zirconium Pipe

Item : zirconium tube 042

Price : USD80-USD120

Details :

zirconium & zirconium alloy tubes/pipes

zirconium pipe specification

1.Standard: ASTM B523

2.Grade: R60702,R60704 and R60705

3.Size: OD(6-100mm) * (L50-3000mm) * Wall thk 0.5~9mm

4.Condition: seamless

5.Purity: 99.5%

6.Featured Zirconium and zirconium alloys

1.For commercial Application (Hf ≤4.5%):

UNS R60700 (Zr1): Commercially pure, Zr+Hf≥99.2

UNS R60702 (Zr3): Commercially pure, Zr+Hf≥99.2

UNS R60704 (Zirconium-Tin alloy): Zr-1.5%Sn, Zr+Hf≥97.5

UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18

UNS R60706 (Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16

2.For Nuclear Industry (Reactor grade, Hf ≤ 0.01%)

UNS R60001 (Zr0):

UNS R60802 (Zr2, Zircaloy2, Zirconium-Tin alloy): Zr-1.5Sn-0.15Fe-0.1Cr-0.05Ni

UNS R60804 (Zr4, Zircaloy4, Zirconium-Tin alloy): Zr-1.5Sn-0.2Fe-0.1Cr

UNS R60901 (Zirconium-Niobium alloy): Zr-2.5Nb, O-0.1%

UNS R60904 (Zirconium-Niobium alloy): Zr-2.5Nb

Zr-1Nb (Zr-1%Nb alloy)

Specification:

Item Name	Zirconium tube&pipes
Material	Zirconium and alloy
Specification	10-600.5-4.0<=9000mm/10-1151.24-5.74<=9000mm
Applications	Nuke industry, automobile industry etc.

Chemical composition

Grade	Zr700 (R60700)	Zr702 (R60702)	Zr704 (R60704)	Zr705 (R60705)	Zr706 (R60706)
Component %
Zr+Hf(min)	99.2	99.2	97.5	95.5	95.5
Hf(max)	4.5	4.5	4.5	4.5	4.5
Fe+Cr	0.20(max)	0.20(max)	0.2-0.4	0.20(max)	0.20(max)
Sn	-	-	-	1.0-2.0	-
H(MAX)	0.005	0.005	0.005	0.005	0.005
C(max)	0.05	0.05	0.05	0.05	0.05
Nb	-			2.0-3.0	2.0-3.0
O(max)	0.10	0.16	0.18	0.18	0.16

Mechanical property

Grade	Zr700 (R60700)	Zr702 (R60702)	Zr704 (R60704)	Zr705 (R60705)	Zr706 (R60706)
Tensile strength min(Mpa)	-	380	415	550	510
Yield strength min(Mpa)	-	205	240	380	345
Tensile strength max(Mpa)	380	-	-	-	-
Yield strength max(Mpa)	305	-	-	-	-
Elongation min %	2	16	14	16	20
Bending radius *	5T	5T	5T	3T	2.5T
