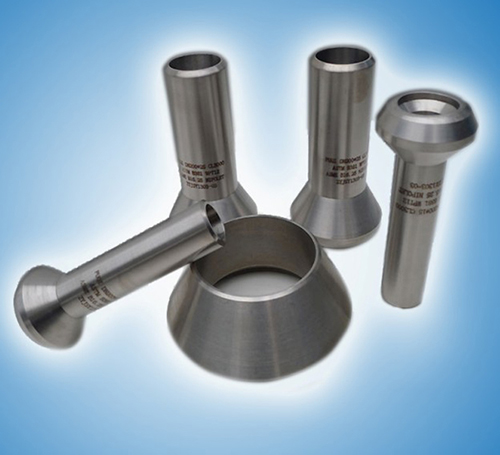

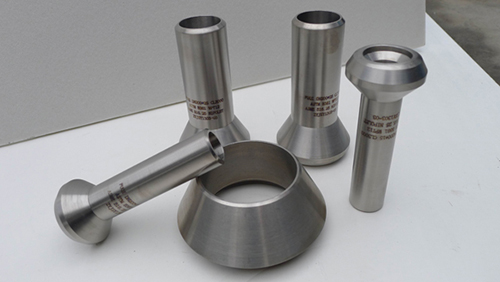

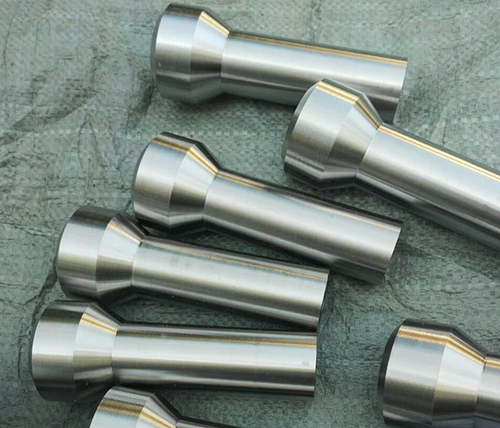

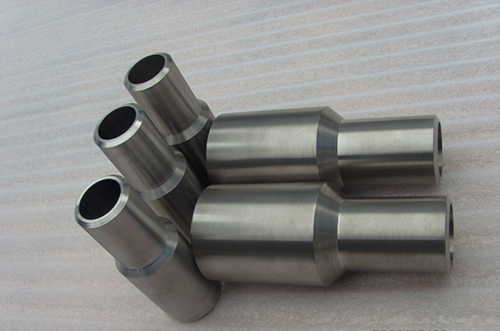

MSS SP97 Gr2 Titanium weldolet

MSS SP97 Gr2 Titanium weldolet MSS SP97 Gr2 Titanium weldolet
Product name : MSS SP97 Gr2 Titanium weldolet
Item : Titanium Weldolet-163
Price : USD20-USD50
Details :


MSS SP97 Gr2 Titanium weldolet

Product name: MSS SP97 Gr2 Titanium weldolet/ nipolet

Density: 4.51g/cm3

Standard: GB/ T 19326-2003  HGJ529  ASME B16.9-2007 MSS SP-97,MSS SP-95

Size:

Outer Diameter   DN15-1200  NPS 1/2"-48"

Wall Thickness: 2MM-30MM    SCH5S-SCH160

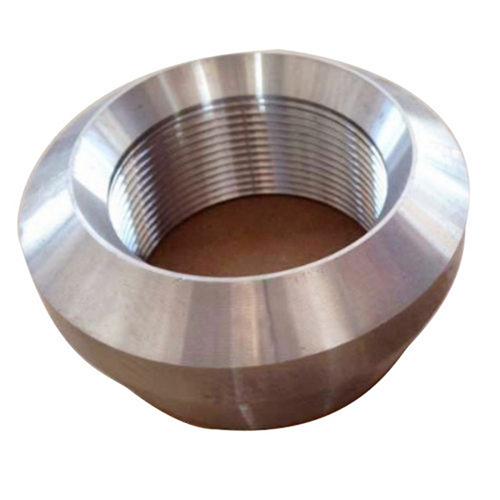

Type: Titanium Weldolet, Titanium Elbolet, Titanium Nipolet, Titanium Threaded Outlet , Titanium Latrobe

Grade:

TA1-TA3, TA8-TA10, TA17, GR1,GR2,GR3,GR4,GR5, GR7, GR9, GR11, GR12, Gr23, Ti-6AL-4V

BT1-00 BT1-0 BT1-2 BT4-0 BT4-1 BT4 BT5-1 BT6 BT6C BT3-1 BT8 BT9 BT14 BT20 BT22

Color.: silver

Surface: Polished, Machining, Pickling, sand blasted


Application:

Petroleum, chemical industry, electric power, metallurgy, pharmacy, shipyard and other similar yield.

Feature:

1. Low Density and High Specification Strength

2. Excellent Corrosion Resistance

3. Good Resistance to Effect of Heat

4. Excellent Bearing to Cryogenics Property

5. Nonmagnetic and Non-toxic

6. Good Thermal Properties

7. Low Modulus of Elasticity

Chemical composition



Grade

N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Gr1

0.03

0.08

0.015

0.2

0.18

/

/

/

/

/

Remain

Gr2

0.03

0.08

0.015

0.3

0.25

/

/

/

/

/

Remain

Gr3

0.05

0.08

0.015

0.3

0.35

/

/

/

/

/

Remain

Gr4

0.05

0.08

0.015

0.5

0.4

/

/

/

/

/

Remain

Gr5

0.05

0.08

0.015

0.4

0.2

5.5~6.75

3.5~4.5

/

/

/

Remain

Gr7

0.03

0.08

0.015

0.3

0.25

/

/

0.12~0.25

/

/

Remain

Gr9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Remain

Gr12

0.03

0.08

0.015

0.3

0.25

/

/

/

0.2~0.4

0.6~0.9

Remain





Packing



Plywood case or According to customer requirements
