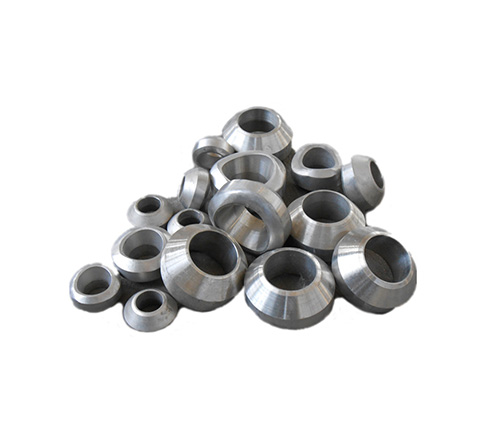

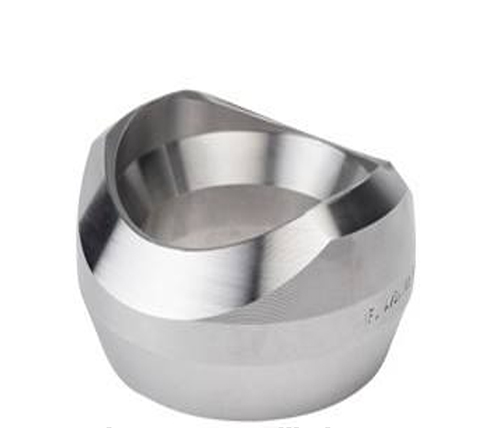

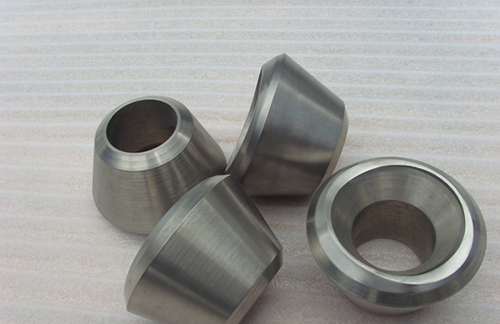

Name: MSS SP-97 Titanium Branch Outlet Fittings Weldolet

Density: 4.51g/cm3

Standard: ANSI B16.9,ANSI B16.28,MSS-SP-97, DIN2605,DIN2615, DIN2616, DIN2617, DIN28011

JISB2313, EN10253-1,EN10253-2,MSS-SP-75, ASTM B363,MSS SP83,MSS SP79,MSS SP95,   ASME B16.11, BS3799

Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23,Nickel Ni200,Ni201

Surface: polished, machining surface

Ends Union: Socket-welding, Threaded, Butt-welding

Class Rating: 3000LB,6000LB,9000LB

Sizes:

Outer diameter: DN15-600  Wall thickness: 1-30MM Pressure: 3000lb to 6000lb

NPS 1/2"-24" Schedule 5s to Schedule 160

Types: Cross, Pipe Cap, Half Coupling, Full Coupling , Street Elbow, Lateral Tee, Flush Bushing, Hex Bushing, Hex Plug, Round Plug, Square Plug,

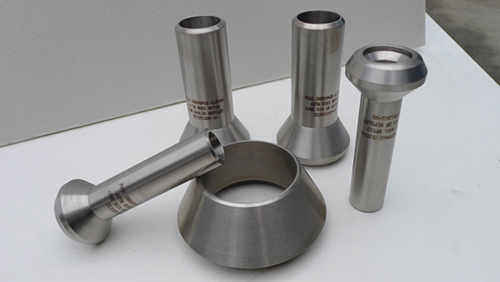

Reducer Inserts, Union, Swaged Nipples, Bull Plugs, Weldolet, Sockolet, Threadolet, Nipolet, Elbolet, Latrolet, Hex Nipple, Bosses, Pipe Nipple

Threaded Type: NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

Inspection: X-Ray Tests or Dye Penetrate Tests

Application:

Petroleum, chemical, machinery, boiler, electric power, shipbuilding, papermaking, construction

Gas Pipe, Carbonization, Refrigeration, Light Industry, Salt Industry, Pressure Vessels

Feature:

1. Low Density and High Strength

2.Excellent Corrosion Resistance in acid and alkali salt

3.High heat transfer capability

4. Nonmagnetic and Non-toxic

5.Low elasticity module

6.Low thermal expansion coefficient

7.Superior strength-to-density ratios

8.Good strength at low and high temperature.

9.Good thermal properties

Package Terms:

Moisture-proof cloth, foam cotton inside, wooden case outside.

Shipping Terms:

1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.

2. For large quantity: By air or sea transport.
