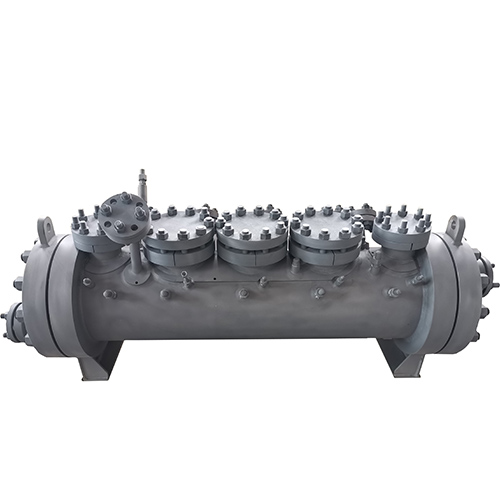

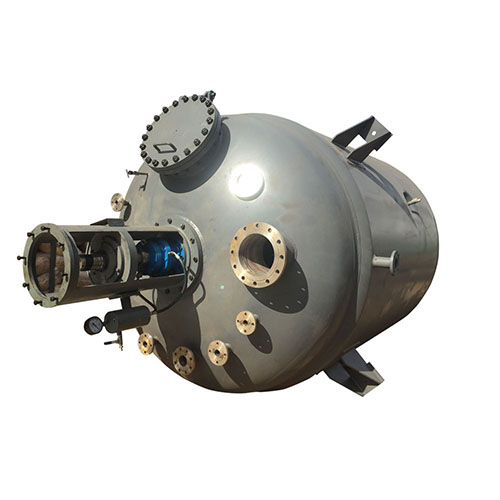

Gr2 Titanium alloy pressure vessel

Gr2 Titanium alloy pressure vessel Gr2 Titanium alloy pressure vessel Gr2 Titanium alloy pressure vessel Gr2 Titanium alloy pressure vessel
Product name : Gr2 Titanium alloy pressure vessel
Item : titanium pressure vessel -0536
Price : USD80-USD10000
Details :

Titanium and Titanium alloy Pressure Vessel/Tank

Name: Titanium Pressure Vessel /Titanium Pressure Storage Tank Vessel

Density: 4.51g/cm3

Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom

Grade: Titanium GR1, GR2, GR3, GR4, GR7, GR9, GR12, GR23 Nickel Ni201,Ni200, Zirconium Zr702, Zr705.

Surface: polished, sand blast, pickling, bright, paint

Nominal volume: 100ml--50m3


Sizes:

Diameter dimension: From 7 "to 83 " inch (180mm to 2100mm)

Technique: RolledCNC,TIG weldingSeamless. Forged,

Discharging type: Upward discharging or downward discharging, dip pipe

Controller Device:

Equipped with automatic or programmed PID or PLC to achieve:

Temperature display and control, accuracy ± 1 (or ±0.1 );

Mixing Speed display and control;

Pressure display and control;

Level display and control;

Flow display and control;

Valve open/close control, etc.


Other Accessories:

We can design and manufacture various reactors as per customer’s request. If user have other special requirements on kettle cover, kettle body opening, internal structure, stirring paddle, and other supporting device (such as condensate return unit, constant feeding tank, receiver, condenser, etc.), we can help customer to achieve their request, can also equip necessary instruments as request.

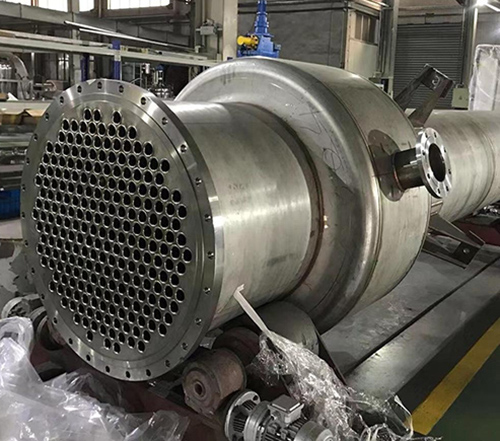

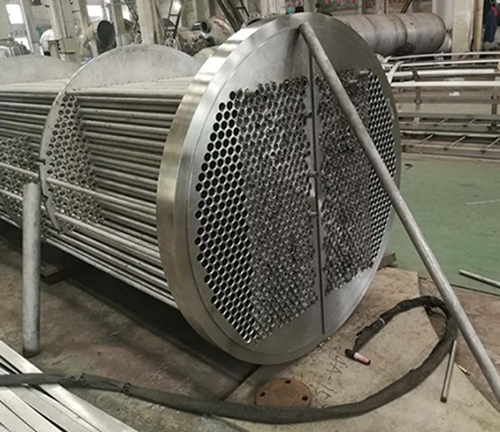

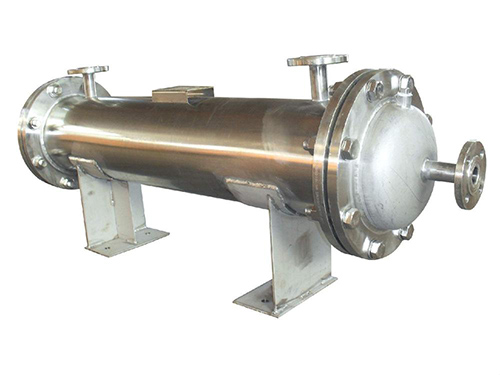

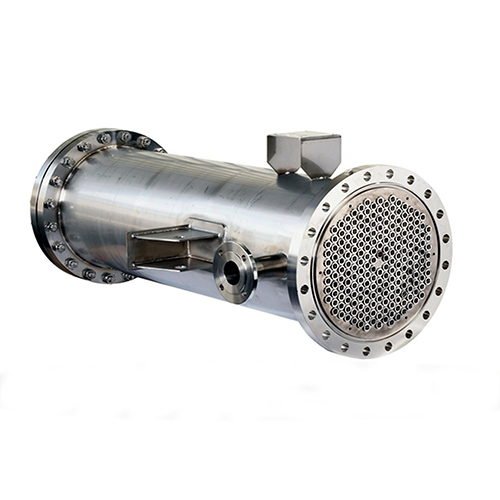

Type: Shell and tube heat exchanger, Plate heat exchanger, Spiral plate heat exchanger,

After-sales Service Provided

Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Application:

chemical engineeringwaste water treatment application, included multi-media filter and softener, Alcohol equipment, Differential pressure, fuel ethanol equipment, dehydration alcohol ethanol equipment, distillation columns, machinery, chemical, chemical fiber, medical, food, metallurgy, military industries.



Chemical composition







N

C

H

Fe

O

Al

V

Pd

Mo

Ni



Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/



Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/



Gr 3

0.05

0.08

0.015

0.30

0.35

/

/

/

/

/



Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/



Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/



Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/



Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9





Tensile requirements

grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15

12

70

438

50

345

18







Shipping Terms:



1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.



2. For large quantity: By air or sea transport.





Email: jasontitanium@163.com

Whatsapp/Skype/Wechat/Line: +86-15829508781
