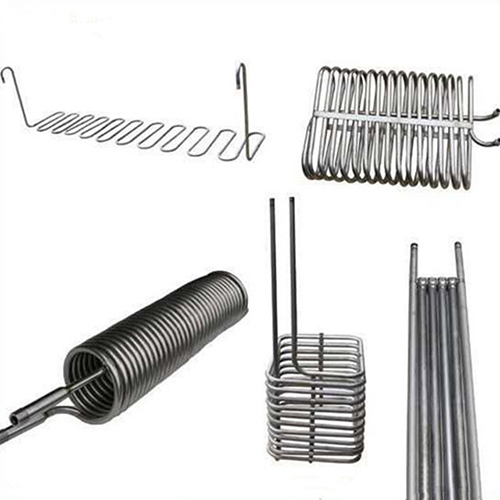

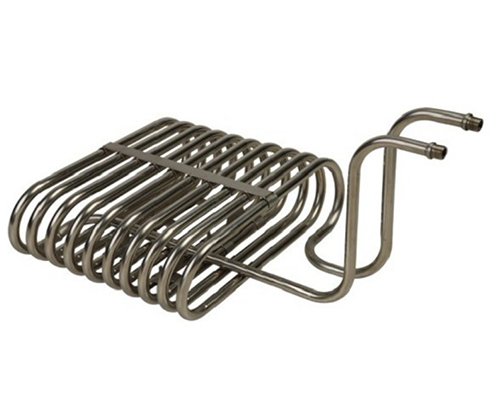

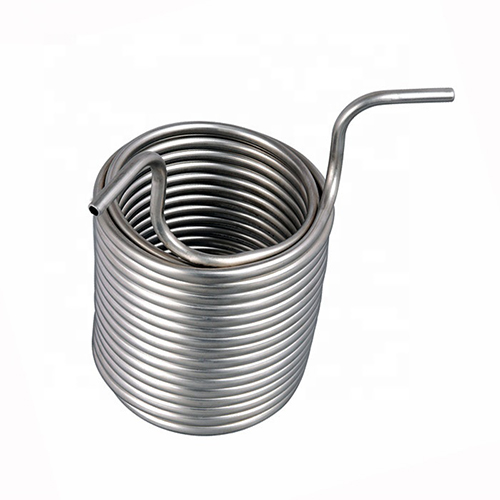

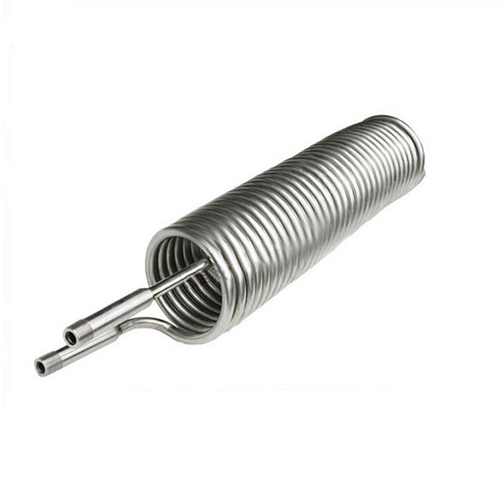

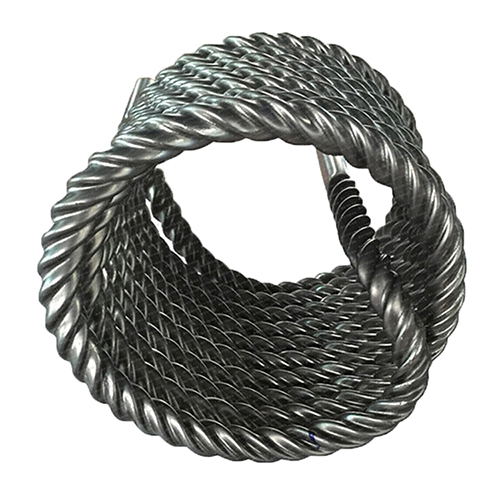

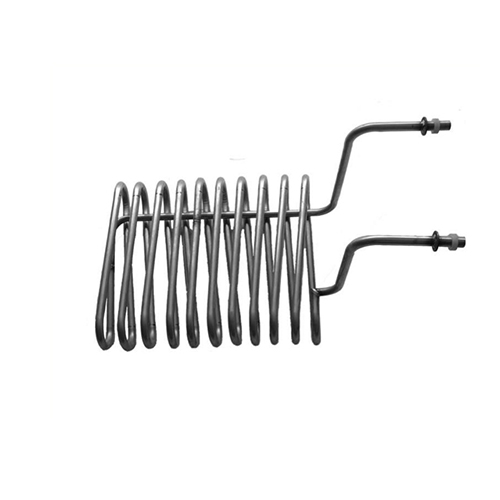

ASTM B338 Gr2 Pure Titanium Spiral Coil Tubing For Heat Exchanger
Product name: ASTM B338 Gr2 Pure Titanium Spiral Coil Tubing
Density: 4.51g/cm3
Standard: ASTM B337, ASTM B338, ASTM B861, ASTM B862
Size:
OD(5-900mm) *W(0.1-20)mm*L(10-12000)mm
Grade:
TA1-TA3, TA8-TA10, TA17, GR1,GR2,GR3,GR4,GR5, GR7, GR9, GR11, GR12, Gr23, Ti-6AL-4V
BT1-00 BT1-0 BT1-2 BT4-0 BT4-1 BT4 BT5-1 BT6 BT6C BT3-1 BT8 BT9 BT14 BT20 BT22
Color.: silver
Surface: Polished, Machining, Pickling, sand blasted
Quality test
Ultrasonic test , Eddy current test , Hydraulic test, Bend Test , Flaring test.
Application:
Heat exchanger; Condenser; Coiling pipe; petroleum pipeline;
Sea farming; electroplating equipment;
Fluid Transportation Piping
Medical, Chemical, Aerospace, Oil, Sports, Bike
Feature:
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
|
Grade
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
Ti
|
|
Gr1
|
0.03
|
0.08
|
0.015
|
0.2
|
0.18
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr2
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr3
|
0.05
|
0.08
|
0.015
|
0.3
|
0.35
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr4
|
0.05
|
0.08
|
0.015
|
0.5
|
0.4
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr5
|
0.05
|
0.08
|
0.015
|
0.4
|
0.2
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
Remain
|
|
Gr7
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
Remain
|
|
Gr9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
Remain
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
Remain
|
Mechanical Properties
|
grade
|
Tensile strength(min)
|
Yeild strength(min)
|
Elongation(%)
|
|
ksi
|
MPa
|
ksi
|
MPa
|
|
1
|
35
|
240
|
20
|
138
|
20
|
|
2
|
50
|
345
|
40
|
275
|
18
|
|
5
|
130
|
895
|
120
|
828
|
10
|
|
7
|
50
|
345
|
40
|
275
|
18
|
|
9
|
90
|
620
|
70
|
483
|
15
|
|
12
|
70
|
483
|
50
|
345
|
18
|
Packing
Plywood case or According to customer requirements
