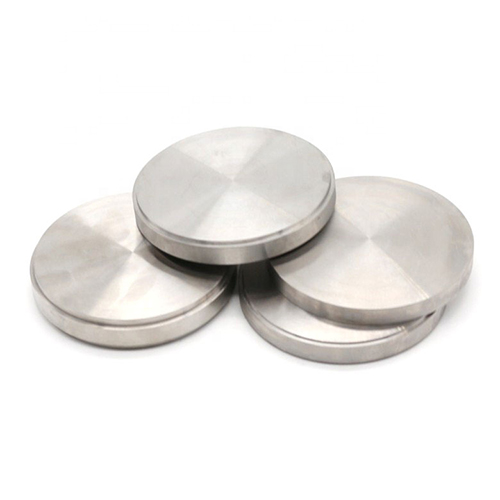

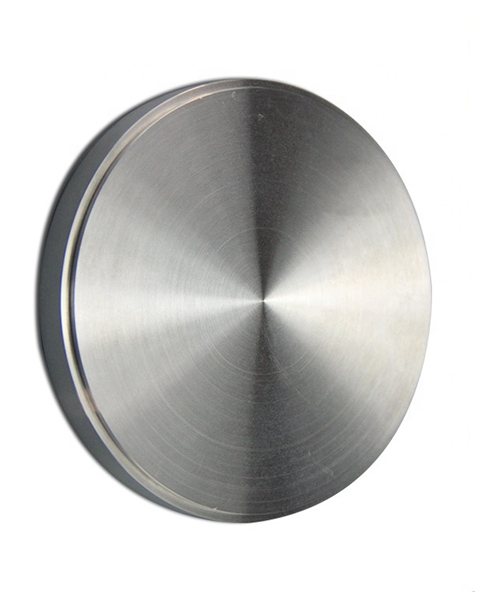

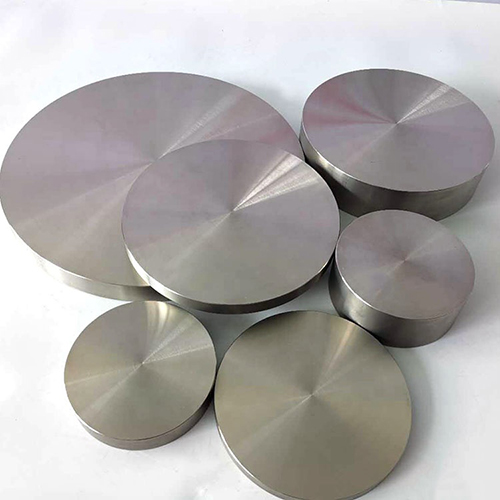

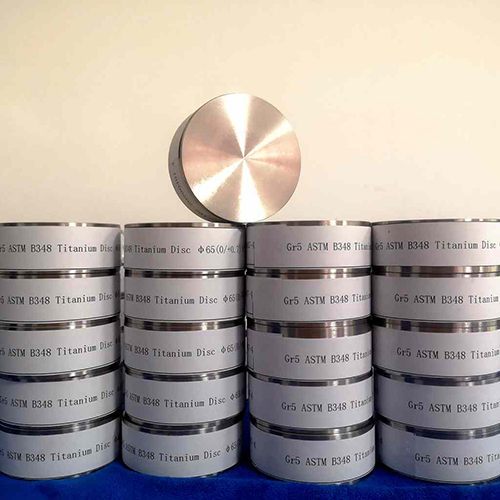

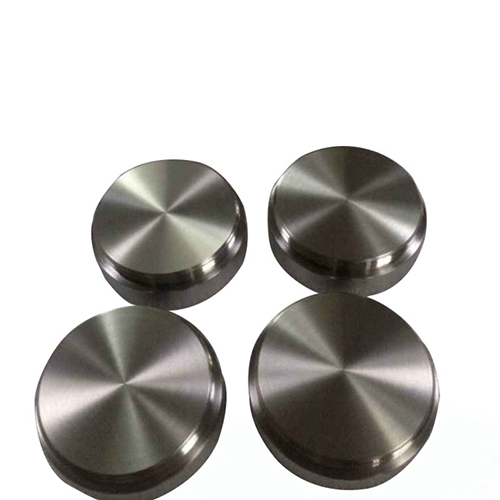

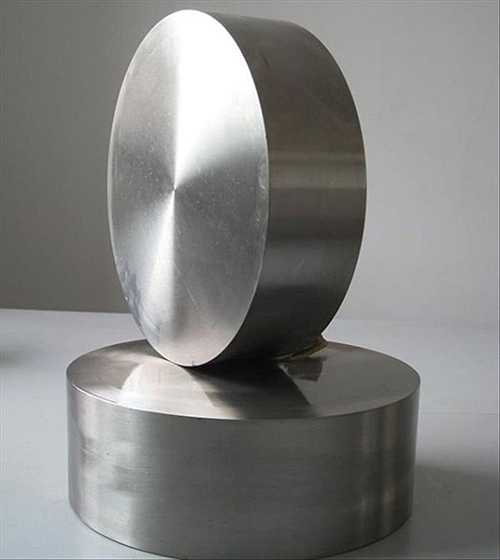

Titanium Alloy Disc and Titanium Ring
Name: Titanium disc titanium round disc
Density: 4.51g/cm3
Standard: ASTM F67, ASTM F136, ASTM B381, ASTM B348, AMS 4928
Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23
Surface: polished, machining surface
Type: Plate, Bar, Disc, Cup, Ring, Tubular,
Sizes:
Diameter：Ø5mm-- Ø 2000mm
thickness :3.0mm--300mm
Width: 10mm-1500mm
Technical:
Forged and CNC Machined
Application:
Electroplating, PVD, Chemical engineering , Petrochemical technology, Medical, Industry, semiconductor, optical applications
Feature:
1. Low Density and High Strength
2.Excellent Corrosion Resistance in acid and alkali salt
3.High heat transfer capability
4. Nonmagnetic and Non-toxic
5.Low elasticity module
6.Low thermal expansion coefficient
7.Superior strength-to-density ratios
8.Good strength at low and high temperature.
9.Good thermal properties
|
Chemical composition
|
|
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Tensile Requirements
|
Grade
|
Tensile strength(min)
|
Yield Strength(min)
|
Elongation(%)
|
|
ksi
|
MPa
|
ksi
|
MPa
|
|
Gr1
|
35
|
240
|
20
|
138
|
24
|
|
Gr2
|
50
|
345
|
40
|
275
|
20
|
|
Gr3
|
65
|
450
|
55
|
380
|
18
|
|
Gr4
|
80
|
550
|
70
|
483
|
15
|
|
Gr5
|
130
|
895
|
120
|
828
|
10
|
Package Terms:
Moisture-proof cloth, foam cotton inside, wooden case outside.
Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity: By air or sea transport.
