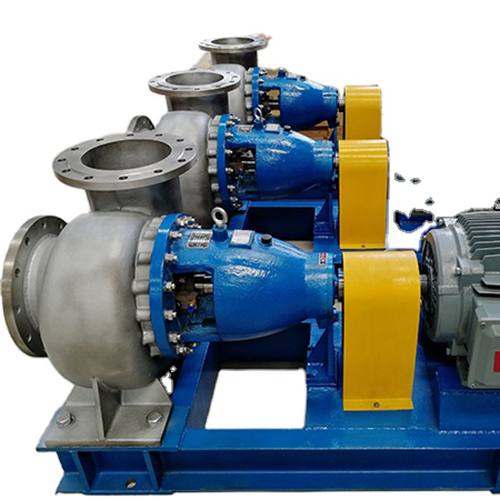

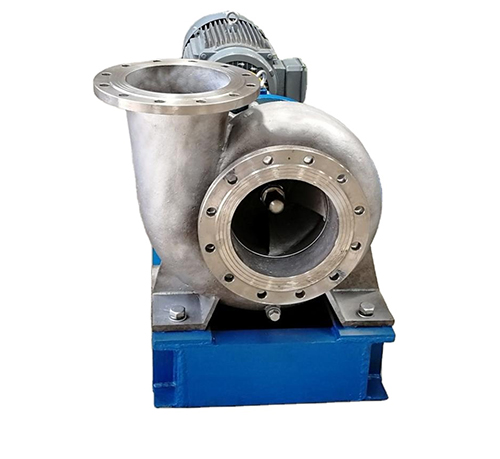

Name: mixed-flow titanium pump

Density: 4.51g/cm3

Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom

Grade:

Titanium Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23,

Sizes:

DN15-DN1200   1/2”-48”

Pressure level : PN10-100 CLASS 150-600Lb

Head : up to 127m

Flow rate :up to 400 m3/hr

Working temperature: -20 °C to 150 °C

Surface : Polish, CNC machining

Technique: Forged, Casting, Welded, CNC

Liquid: High corrosion medium, Waste water, High and low density slurry

Application:

(1)Alkali industry: salt water, chlorine, sodium hypochlorite

(2)Paper industry: dioxide atmosphere, sodium hypochlorite

(3)Food industry: sodium glutamate

(4)Petrochemical industry: acetaldehyde, acetone, various ammonia and ethylene chloride

(5)Pharmaceutical industry: the production of medicine and pesticide

(6)Sewage, sea water equipment: sewage treatment, sea water desalination equipment

(7)Synthetic fiber industry: the production of titanium acid, etc.

(8)Fertilizer industry: urea, ammonium chloride, ammonium nitrate

(9)Acid industry: nitric acid, acetic acid, acrylic acid

(10)Iron and steel industry: electroplating, pickling, waste acid treatment and so on

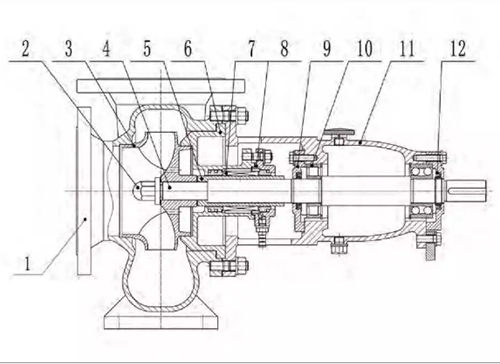

mixed-flow titanium pump structural drawing

1- Pump body    2- Impeller nut   3- Impeller    4- Pump shaft    5- Shaft sleeve    6- Pump cover 7-Mechanical seal 8-Mechanical seal gland  9-Bearing gland  10-Bearing  11-Bearing box  12-Oil seal

Package Terms:

Moisture-proof cloth, foam cotton inside, Carbon or plywood case outside.

Shipping Terms:

1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.

2. For large quantity: By air or sea transport.
