Titanium and Titanium alloy Mesh Anode Basket
Name: Titanium and Titanium alloy Mesh Anode Basket
Density: 4.51g/cm3
Standard: ASTM, JIS, EN, DIN, GB, ISO, ANSI, BS, OEM Custom
Grade: Titanium GR1, GR2, GR3, GR4, GR7, GR9, GR12, GR23
Surface: polished, Sand blasting, Brush Coating, pickling，bright
Sizes:
Diameter: φ25.4-300mm 1”-10”
Thickness: δ0.2-25mm
Length: 30-2000mm 1”-48”
Length x Width x Thickness
400x120x50mm,500x130x55mm,600x150x55mm,
700x175x60mm, 800x195x60mm,900x215x65mm,
1000x250x65mm,1400x300x50mm,etc.

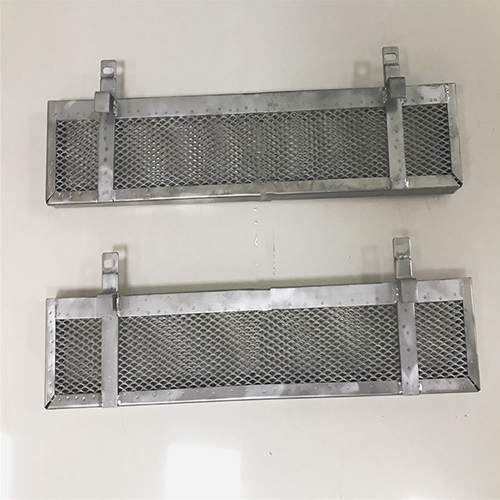

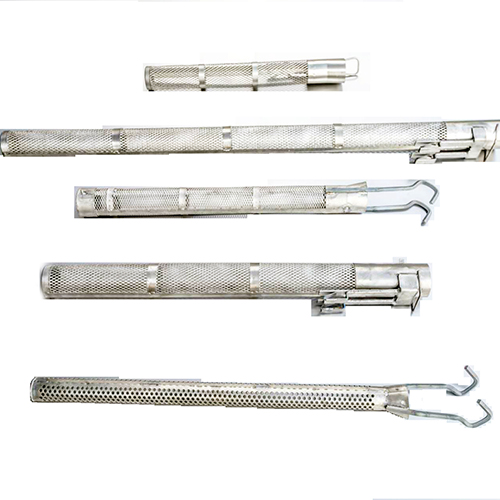

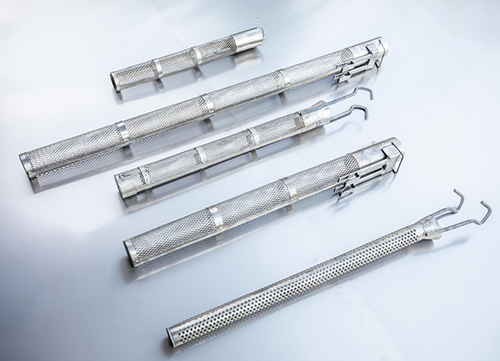

Shape: Square, Round, Rhombus
Coating: Electroplating Ir, Ru, Ta, Pt, etc.
Technique: TIG welding, Mesh, Cutting, welding, bending
Mesh Size: 6*3 mm, 5*4 mm, 8*4mm, 10*5mm, 12.5*4.5mm
Main Characters:
1. Dimensionally stableI.
2. MMO coating is insoluble.
3. Energy-saving and high efficient.
4. High current efficiency and catalytic.
5. Operating voltage is stable.
Application:
Sewage treatment, Cathode protection, Noble metal plating (silver, gold), Sea water antifouling, Testing electrode, Electrolytic syn thesis of organic, Electroplating Industry, Electrodialysis, Electrolytic water
Feature:

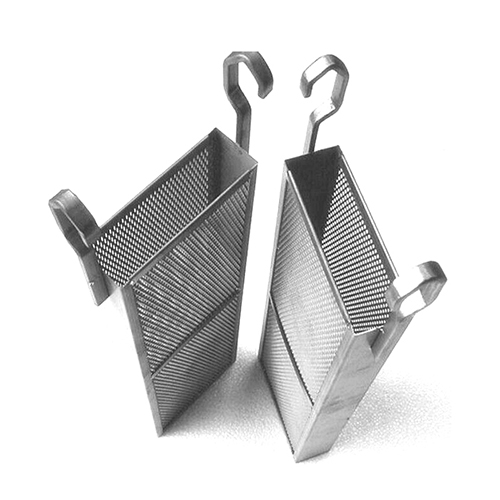

Square hook TIG welded to topband for maximum strength and single point contact.
Mesh to frame forme and horizontal and vertical reinforcing bands also done by TIG welding process.
Solid bottom welded to bottom band ensuring maximum strength and proper drainage.
Double Contact Hooks spot welded and TIG welded to top band for maximum strength.
Mesh is TIG-welded for complete weld connections to bands and side channels.
Solid side channels construction for strength and durability.
|
Chemical composition
|
|
|
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
|
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
|
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
|
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
|
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Tensile requirements
|
grade
|
Tensile strength(min)
|
Yeild strength(min)
|
Elongation(%)
|
|
ksi
|
MPa
|
ksi
|
MPa
|
|
1
|
35
|
240
|
20
|
138
|
24
|
|
2
|
50
|
345
|
40
|
275
|
20
|
|
5
|
130
|
895
|
120
|
828
|
10
|
|
7
|
50
|
345
|
40
|
275
|
20
|
|
9
|
90
|
620
|
70
|
438
|
15
|
|
12
|
70
|
438
|
50
|
345
|
18
|

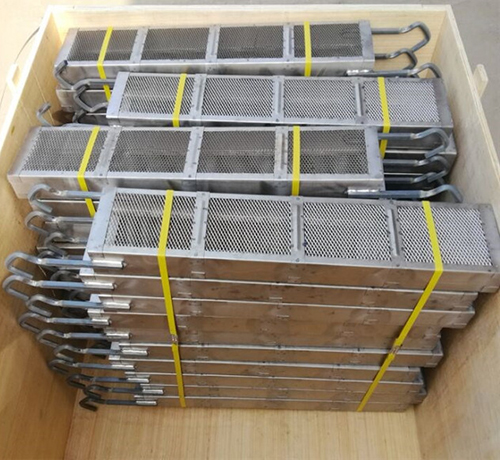

Package Terms:
Moisture-proof cloth, foam cotton inside, Carbon or plywood case outside.
Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity: By air or sea transport.
Email: jasontitanium@163.com
Whatsapp/Skype/Wechat/Line: +86-15829508781
