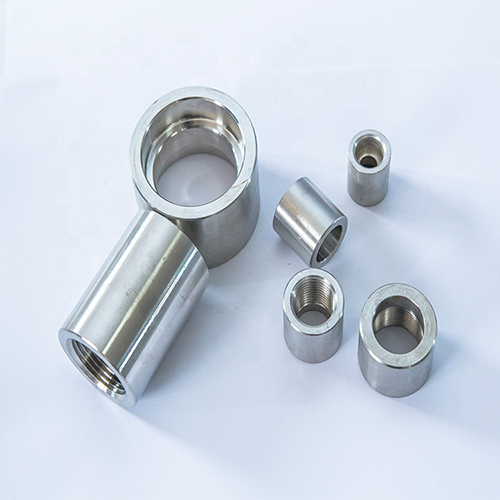

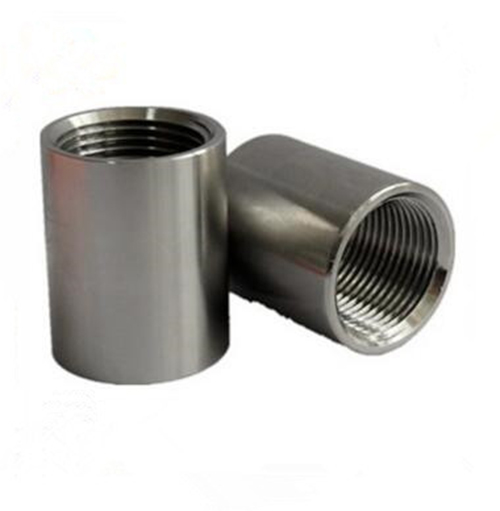

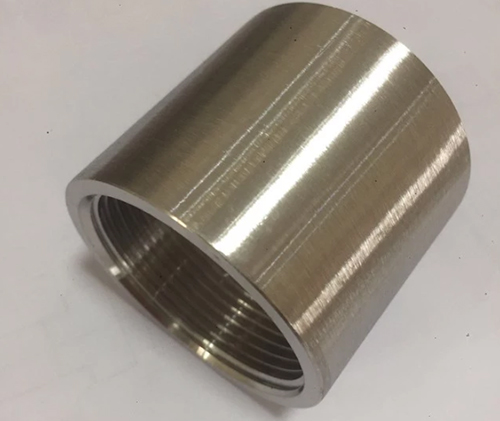

ASME B16.11 Titanium and Titanium alloy coupling
Product name: ASME B16.11 Titanium and Titanium alloy coupling
Density: 4.51g/cm3
Standard: ASME SB381, ASTM B381, AMS 4928, ASME B16.11
Size:
1”-4” inch class3000,class 6000
Connection type: Female, male
Threaded: NPT BSPT BSP
Type: Socket-welding Coupling ,Threaded Coupling
Grade:
TA1-TA3, TA8-TA10, TA17, GR1,GR2,GR3,GR4,GR5, GR7, GR9, GR11, GR12, Gr23, Ti-6AL-4V
Color.: silver
Surface: Polished, Machining,
Application:
Water, oil ,gas, industry, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.
Feature:
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
|
Grade
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
Ti
|
|
Gr1
|
0.03
|
0.08
|
0.015
|
0.2
|
0.18
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr2
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr3
|
0.05
|
0.08
|
0.015
|
0.3
|
0.35
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr4
|
0.05
|
0.08
|
0.015
|
0.5
|
0.4
|
/
|
/
|
/
|
/
|
/
|
Remain
|
|
Gr5
|
0.05
|
0.08
|
0.015
|
0.4
|
0.2
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
Remain
|
|
Gr7
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
Remain
|
|
Gr9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
Remain
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
Remain
|
Packing
Plywood case or According to customer requirements
