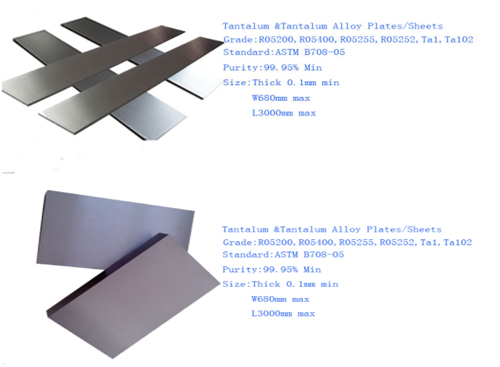

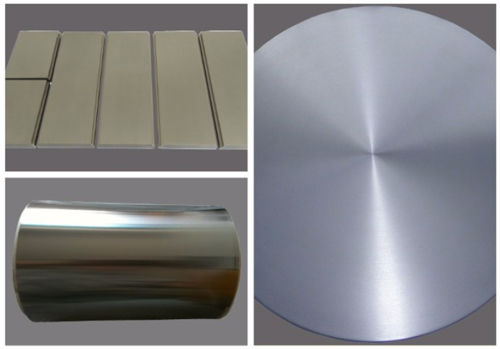

Tantalum plate, Tantalum sheet & Tantalum foil
|
Name
|
Tantalum plate, Tantalum sheet & Tantalum foil
|
|
Purity
|
99.95% min
|
|
Grade
|
R05200, R05400,R 05252, R05255, R05240
|
|
Condition
|
1. Hot-rolled/Cold-rolled; 2.Alkaline Cleaning
3.Electrolytic polish; 4. Machining, grinding; 5.Stress relif anealing
|
|
Mechanical Property
|
|
Grade
(UNS)
|
Tensile strength min
psi( (MPa)
|
Yield strength min,
psi (MPa)(2%)
|
Elongation min,%
(1 inch gage length)
|
|
Pure Ta(R05200 R05400)
|
30000(207)
|
20000(138)
|
20
|
|
Ta-10W(R05255)
|
70000(482)
|
60000(414)
|
15
|
|
Ta-2.5W(R05252)
|
40000(276)
|
30000(207)
|
20
|
|
Ta-40Nb(R05240)
|
35000(241)
|
20000(138)
|
25
|
|
|
Standard
|
ASTM B708 GB/T 3629
|
|
|
Thickness (mm)
|
Width (mm)
|
Length (mm)
|
|
Foil
|
0.01-0.09
|
30-150
|
>200
|
|
Sheet
|
0.1-0.5
|
30- 609.6
|
30-1000
|
|
plate
|
0.5-10
|
50-1000
|
50-2000
|
|
|
Features:Tantalum belong to the high melting point ,high boiling point rare metal color ,steel ,ductility and corrosion resistance
R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both,
R05400, unalloyed tantalum, powder-metallurgy consolidation,
R05255, tantalum alloy, 90 % tantalum 10 % tungsten, electron-beam furnace or vacuum-arc melt, or both,
R05252, tantalum alloy, 97.5 % tantalum 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both,
R05240 tantalum alloy, 60 % tantalum 40 % columbium, electron-beam furnace or vacuum-arc melt, or both
