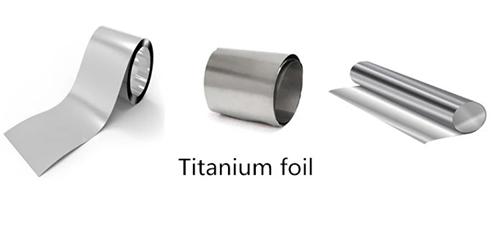

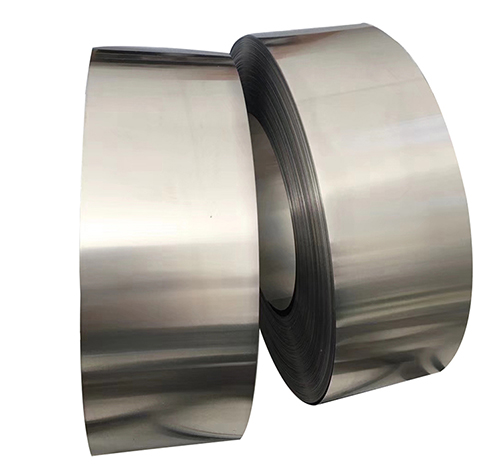

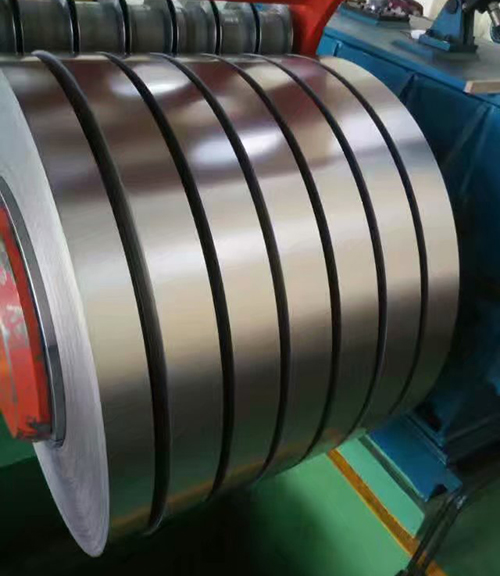

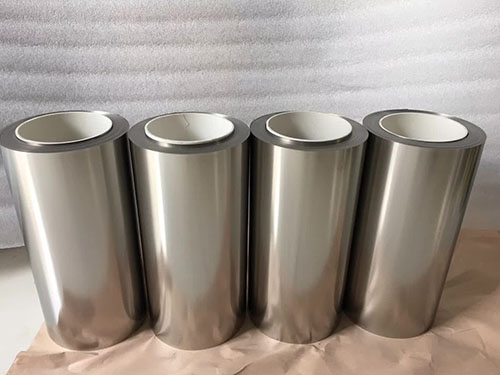

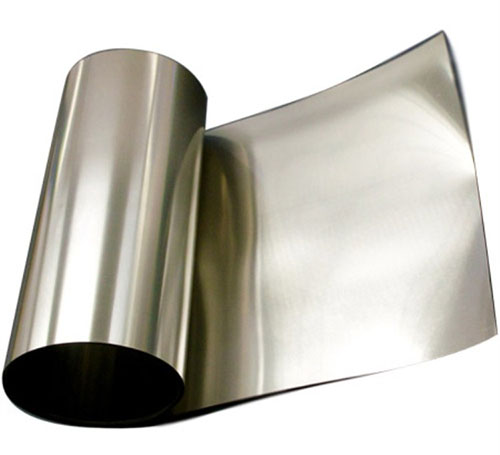

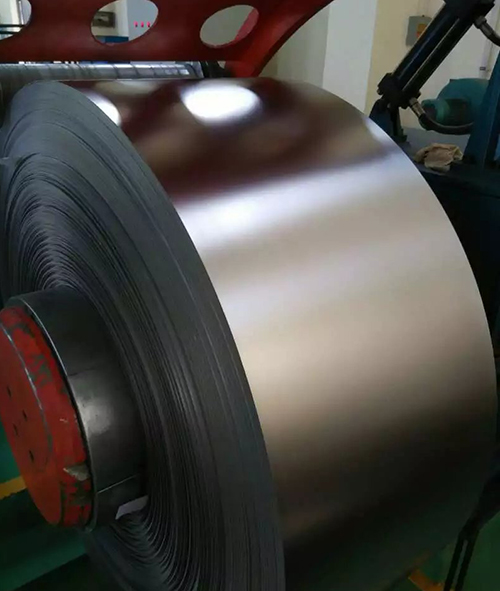

ASTM B265 Pure Titanium Foil Titanium Strip

ASTM B265 Pure Titanium Foil Titanium Strip ASTM B265 Pure Titanium Foil Titanium Strip ASTM B265 Pure Titanium Foil Titanium Strip
Product name : ASTM B265 Pure Titanium Foil Titanium Strip
Item : titanium foil -156
Price : USD20-USD120
Details :


ASTM B265 Gr1 Gr2 Pure Titanium Strip Titanium Foil

Name: Gr1 Gr2 Pure Titanium Strip Titanium Foil

Density: 4.51g/cm3

Standard: ASTM B265, ASTM F67/F136 ISO 5832  AMS 4928 for aerospace use

Grade: GR1, GR2, GR5, GR7, GR12

BT1-0, BT1-00, BT6

TP270, TP340, TP340PB, TAP6400

TA1, TA2, TC4, TA9, TA10


Color.:
sliver

Surface: Metal bright

Sizes:

Titanium Foil and Titanium Strip

thickness :Min. 0.01mm up to 1mm

width: 20mm up to 500mm

Length: flat: within 1000mm  /   in roll > 3000mm



Condition: Vacuum Annealed



Application:

Axis machining, standard part, electroplating equipment,

Medical, conductive material sound film of loudspeaker for earphone, head ph etc.



Feature:

1.Low Density and High Strength

2.Excellent Corrosion Resistance

3.Good resistance to effect of heat

4.Excellent Bearing to cryogenic property

5.Nonmagnetic and Non-toxic

6.Good thermal properties

7.Low Modulus of Elasticity



Chemical composition





N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

Gr 3

0.05

0.08

0.015

0.30

0.35

/

/

/

/

/

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9







Packaging: Plywood case or as per client requirement
