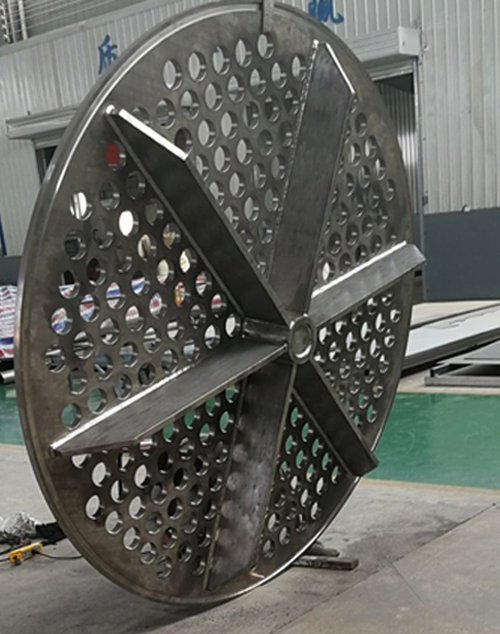

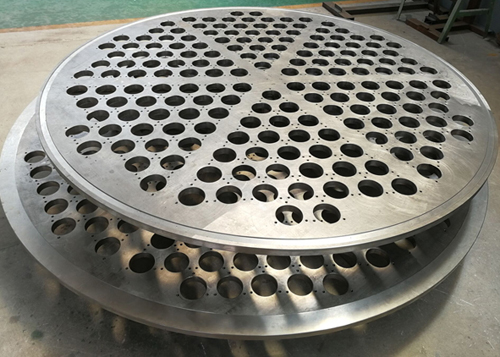

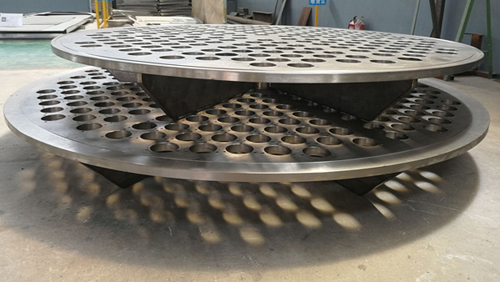

titanium tube sheet
1.Grade: Gr1,Gr2,Gr5,Gr7,Gr9,Gr18,Gr23,Ta1,Ta2,Tc4,TA9,TA18
2.Standard: ASTMB381,ASTMB348 DIN JIS,ASTM B265
3.Dia: (100-2000)mmx T:(20-100)mm
4.Processing technic: Cold roll, hot roll, annealing
5.Application:industrial
Product Introduction
|
NAME
|
titanium tube sheet price
|
|
GRADE
|
GR1, GR2
|
|
STANDARD
|
ASTM B265 GB/T 3621-2007
|
|
DIMENSION (MM)
|
OD≤3000*Thickness20~100mm
|
1. Chemical requirements
|
Grade
|
N
|
C
|
H
|
Fe
|
O
|
Ti
|
|
Gr1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
bal
|
|
Gr2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
bal
|
2. Mechanical Properties
|
Grade
|
Tensile strength(min)
|
Yield strength(min)
|
Elongation (%)
|
|
ksi
|
MPa
|
ksi
|
MPa
|
|
Gr1
|
35
|
240
|
25
|
170
|
24
|
|
Gr2
|
50
|
400
|
40
|
275
|
20
|
Applications
1. Ttanium tube sheets are widely used in heat exchanger, boiler, pressure vessel, steam turbine,
large central air-conditioning industry.
2. Titanium tube sheets are mainly used for chemical containers, such as heat exchanger, pressure
vessel, boiler, condenser, evaporator, central air conditioning, desalination, supporting fixed tube,
metal material which not only has strong rigidity and thermal conductivity has great energy.
