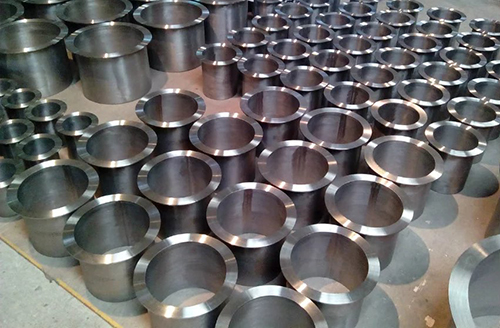

EN1092-1 Gr12 Titanium Collar

EN1092-1 Gr12 Titanium Collar EN1092-1 Gr12 Titanium Collar EN1092-1 Gr12 Titanium Collar EN1092-1 Gr12 Titanium Collar

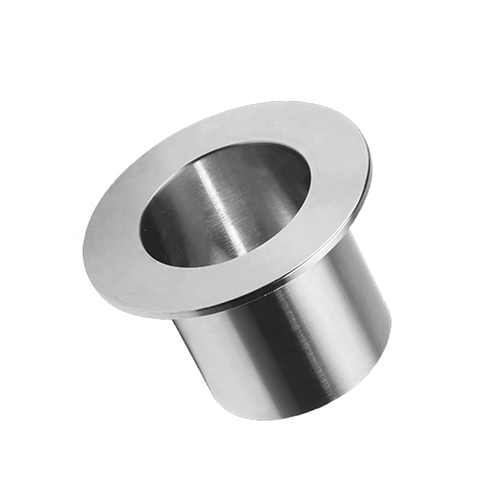

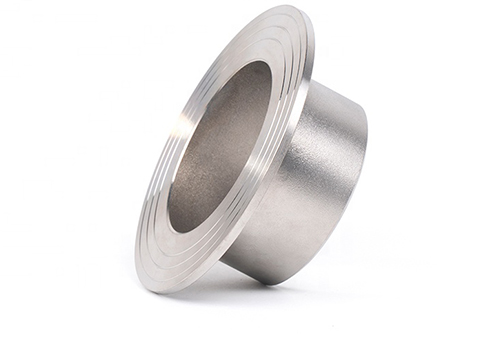

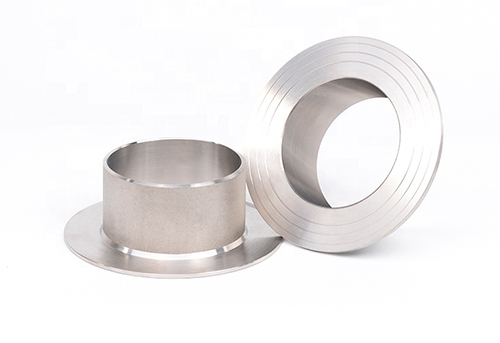

Product name : EN1092-1 Gr12 Titanium Collar
Item : Titanium collar-412
Price : USD20-USD50
Details :

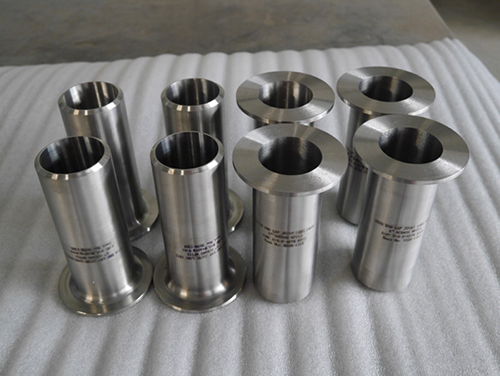

Titanium and Titanium alloy Stub End /Titanium Collar

Name: ASTM B363 WPT7 Titanium Stub End ANSI B16.9

Density: 4.51g/cm3

Standard: ASME B16.9, ASTM B363, EN1092-1, EN10253, JIS B2313,

MSS SP-43, SSG7836E, DIN 2065

Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23,Nickel Ni200,Ni201

Surface: polished, machining surface, quartz-shot, sand-blasting, Pickling

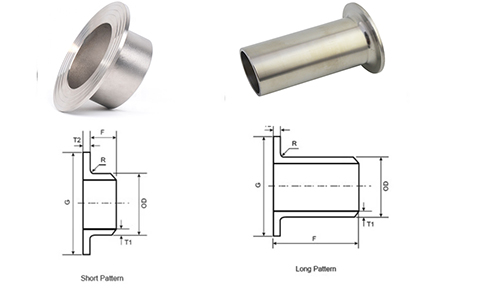

Type: Long Pattern, Short Pattern


Sizes:

Outer diameter: DN15-2400  Wall thickness: 1-30MM

NPS 1/2"-96" Schedule 5s to Schedule 160


Technical:

Welded, Forged, Pressing, Seamless

Inspection: X-Ray Tests or Dye Penetrate Tests


Application:

Petroleum, chemical, machinery, boiler, electric power, shipbuilding, papermaking, construction

Gas Pipe, Carbonization, Refrigeration, Light Industry, Salt Industry,

Feature:

1. Low Density and High Strength

2.Excellent Corrosion Resistance in acid and alkali salt

3.High heat transfer capability

4. Nonmagnetic and Non-toxic

5.Low elasticity module

6.Low thermal expansion coefficient

7.Superior strength-to-density ratios

8.Good strength at low and high temperature.

9.Good thermal properties



Chemical composition





N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

Gr 3

0.05

0.08

0.015

0.30

0.35

/

/

/

/

/

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9





Package Terms:



Moisture-proof cloth, foam cotton inside, wooden case outside.



Shipping Terms:



1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.



2. For large quantity: By air or sea transport.





Email: jasontitanium@163.com

Whatsapp/Skype/Wechat/Line: +86-15829508781
