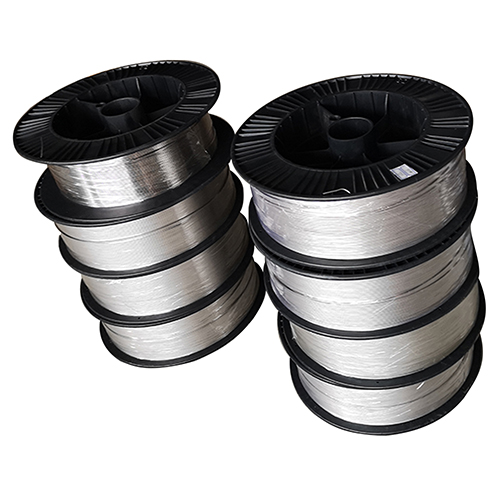

Titanium and Titanium Alloy wire
Name: Titanium wire
Density: 4.51g/cm3
Standard: ASTM B863, AWS 5.16, ASTM F2063
Grade: Titanium Gr1 (3.7025), Gr2 (3.7035), Gr7 (3.7235), Gr12 (3.7105), Nickel UNS N02200 (2.4066), UNS N02201 (2.4068) Titanium Gr5, P270H,TP270C,TP340H,TP340C,TP480H,TP480C,etc.
Surface: pickling, polished, acid washed, black

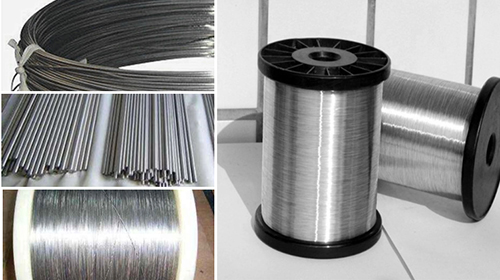

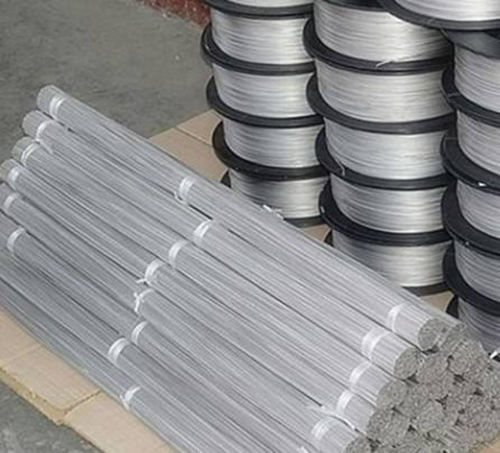

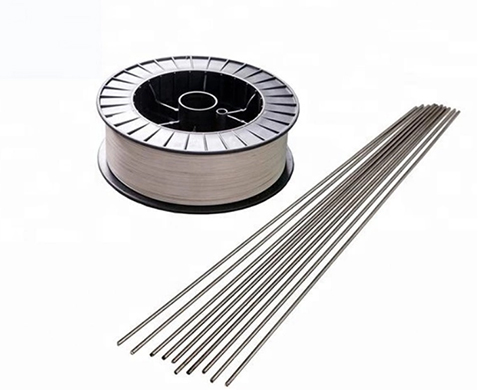

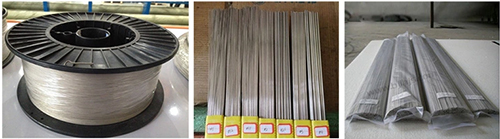

Shape: Straight, Spool, Coil
Status: Hot Rolled (R), Cold Rolled (Y), Annealed(M)
Processing :
Hot rolling, annealed Surface Polishing
Sizes:
Diameter:0.1-6.35 mm
Length:100mm-L
Technical:
Bar billets-hot rolling-drawing-annealing-strength-pickling
Application:
Military, Medical, Industry, Glasses, Jewelry, Ornaments, welding, sporting goods, Motor vehicle, Electroplating, TIG
Feature:
1. Low Density and High Strength
2.Excellent Corrosion Resistance in acid and alkali salt
3.High heat transfer capability
4. Nonmagnetic and Non-toxic
5.Low elasticity module
6.Low thermal expansion coefficient
7.Superior strength-to-density ratios
8.Good strength at low and high temperature.
9.Good thermal properties
Chemical composition
|
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Package Terms:
Moisture-proof cloth, foam cotton inside, wooden case outside.
Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity: By air or sea transport.
Email: jasontitanium@163.com
Whatsapp/Skype/Wechat/Line: +86-15829508781
