ASTM B363 WPT2 Titanium elbow Titanium bend

ASTM B363 WPT2 Titanium elbow Titanium bend ASTM B363 WPT2 Titanium elbow Titanium bend ASTM B363 WPT2 Titanium elbow Titanium bend ASTM B363 WPT2 Titanium elbow Titanium bend

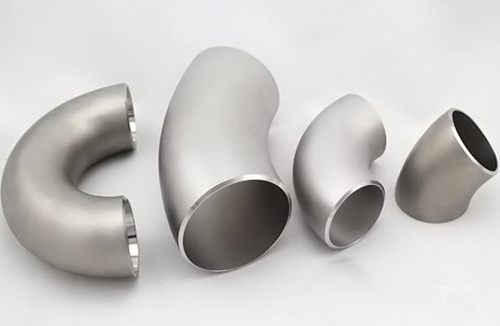

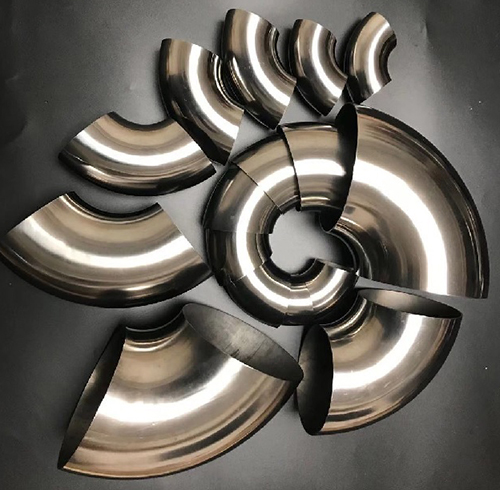

Product name : ASTM B363 WPT2 Titanium elbow Titanium bend
Item : titanium elbow-390
Price : USD20-USD45
Details :
Titanium and Titanium alloy elbow Titanium bend

Name: ASTM B363 WPT2 Titanium elbow Titanium bend ANSI B16.9

Density: 4.51g/cm3

Standard: ASME B16.9, ASTM B363, EN1092-1, EN10253, JIS B2313,

MSS SP-43, SSG7836E, DIN 2065

Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23,Nickel Ni200,Ni201

Surface: polished, machining surface, quartz-shot, sand-blasting, Pickling

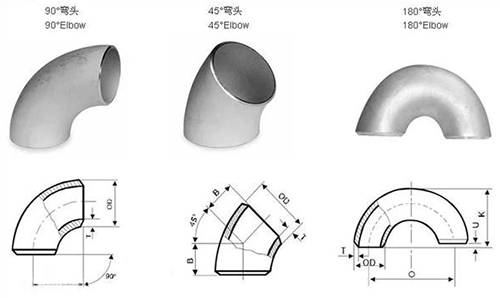

Degree: 30,45,60,90,120,180degree


Type:
R=1.0D,1.5D,3D,5D

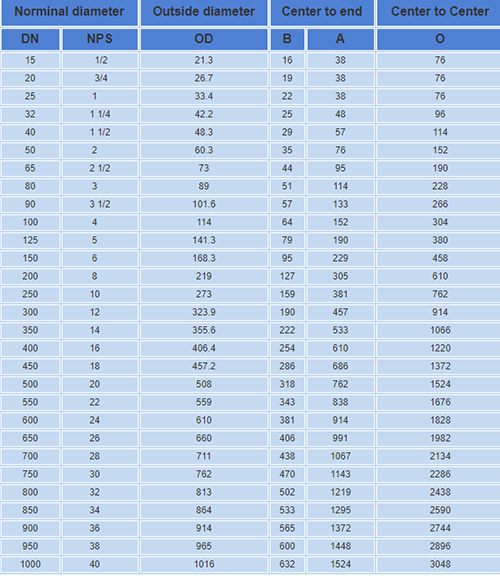

Sizes:

Outer diameter: DN15-1200  Wall thickness: 1-30MM

NPS 1/2"-48" Schedule 5s to Schedule 160


Technical:

Welded, Forged, Pressing, Seamless

Inspection: X-Ray Tests or Dye Penetrate Tests


Application:

Petroleum, chemical, machinery, boiler, electric power, shipbuilding, papermaking, construction

Gas Pipe, Carbonization, Refrigeration, Light Industry, Salt Industry,

Feature:

1. Low Density and High Strength

2.Excellent Corrosion Resistance in acid and alkali salt

3.High heat transfer capability

4. Nonmagnetic and Non-toxic

5.Low elasticity module

6.Low thermal expansion coefficient

7.Superior strength-to-density ratios

8.Good strength at low and high temperature.

9.Good thermal properties



Chemical composition





N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

Gr 3

0.05

0.08

0.015

0.30

0.35

/

/

/

/

/

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9





Package Terms:



Moisture-proof cloth, foam cotton inside, wooden case outside.



Shipping Terms:



1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.



2. For large quantity: By air or sea transport.





Email: jasontitanium@163.com

Whatsapp/Skype/Wechat/Line: +86-15829508781
