Titanium and Titanium alloy bars process
Titaniunm bars Mechanical Properties
Annealed status in room-temperature (20°C)
1.Tensile Strength: σb≥895Mpa(130ksi)
2.Permanent Elongation stress: σ0.2≥828Mpa(120ksi)
3.Elongation: A4D≥10%
4.Reduction of Area: Z≥25%
Titanium bars Chemical requirements
|
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pa
|
Mo
|
Ni
|
Ti
|
|
Gr 1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
bal
|
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
bal
|
|
Gr 3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
/
|
/
|
/
|
/
|
/
|
bal
|
|
Gr 4
|
0.05
|
0.08
|
0.015
|
0.50
|
0.40
|
/
|
/
|
/
|
/
|
/
|
bal
|
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
bal
|
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
bal
|
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
bal
|
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
bal
|
The advantages of Titanium bars
* Excellent resistance to corrosive and erosive action of high-temperature acid steam and brine,
* High strength
* High resistance to pitting, crevice corrosion resistance
* High strength to weight ratio
* Weight saving possibilities
* Low modulus, high fracture toughness and fatigue resistance
* Suitability for coiling and laying on seabed
* Ability to withstand hot/dry and cold/wet acid gas loading

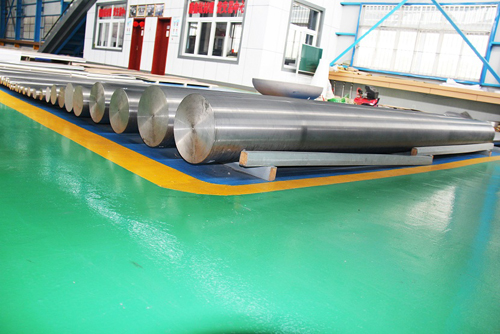

Titanium Rods
|
Grade
|
Gr1,Gr2,Gr3,Gr4,GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18
|
|
Standard
|
ASTM B265,ASTM B862.ASTM B861.ASTM B348.ASTM B863.ASTM B381.ASTM B367.
ASTM F136.ASTM F67.ASTM F1472
AMS 4928, ISO5832-3
|
|
Specification
|
Diameter: 7.0 ~ 350 (mm) Length:Max6000 (mm)
|
|
Payment
|
T/T, L/C at sight, as your inquiry
|
|
Technology
|
Forging , Rolling, Extruding,
Cold-rolled, Hot-rolled.
According to the drawings, custom processing.
|
|
Certificate
|
ISO 9001:2008, AS 9100
PED Certificate,Aerospace,Military Certificate
|
|
Surface
|
Grinding, Polishing, Pickling, Sand blasting, Bright mirror, Blasting, Vacuum annealing
|
|
Delivery
|
The stock is within 7 days,Other according to the number and process to determine the delivery date.
|
|
In stock
|
Titanium plate: Length: 2000mm Width: 1000mm Thickness:Max 30 mm
Titanium bar: Diameter: 7.0 ~ 75mm Length:Max6000 mm
Titanium tube: OD:7.0-130mm WT: 1.0-8.0mm Length:Max6100 mm
Titanium wire: Diameter: 0.1-7.0 Length: Customed mm
|
|
Application
|
Oil drill pipe, oil exploration, oil drilling platform, vacuum coating pipe, mining equipment, coal chemical equipment, gas drilling equipment, such as high pressure resistance, wear resistance, corrosion resistance. etc.
|
Attn : Jason
Email: jasontitanium@163.com
Skype: txcanberra |
|
